Product Description:

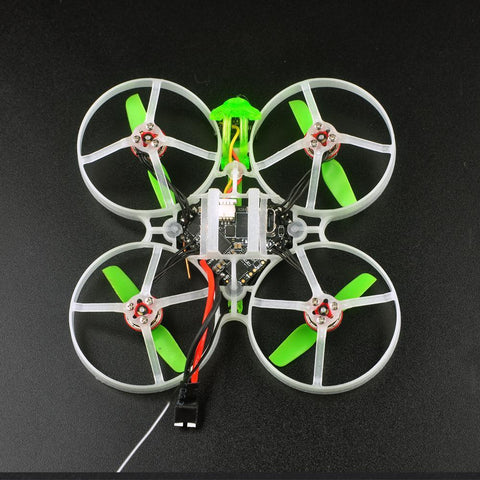

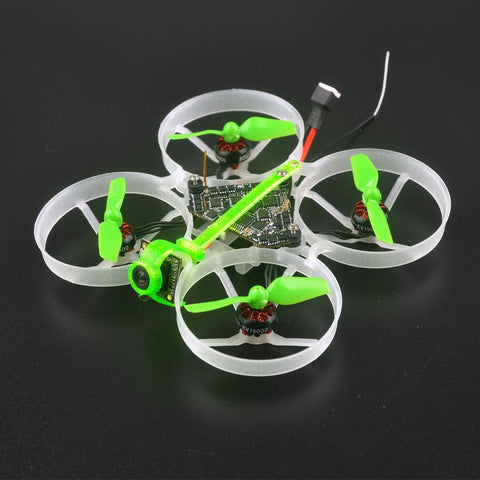

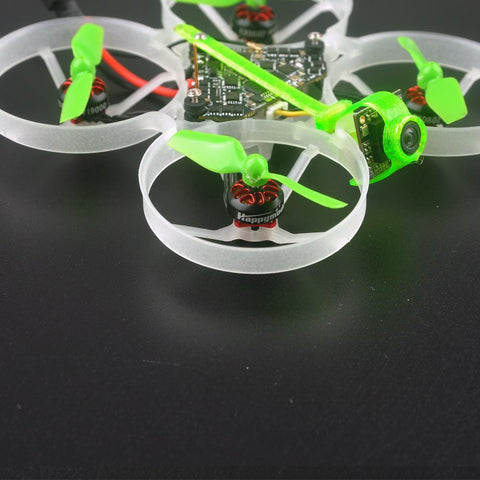

HappyModel Moblite7 Ultra Light 1S 75mm Brushless TinyWhoop BNF FrSky ELRS

Specifications:

Brand Name: Happymodel
Item Name: Moblite7 1S 75mm ultra light brushless whoop
Wheelbase: 75mm
Size: 97mm*97mm*25mm

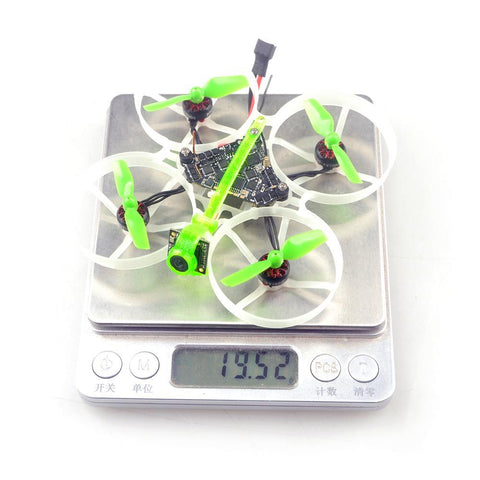

Weight: 19.5g (without battery)
Weight:36g(with Original 1s 650mah Lipo battery )

Features:

The lightest 1s 75mm brushless whoop
Powerful and efficiency
The lightest 1s AIO 5IN1 F4 flight controller
New Unibell EX0802 brushless motors
Low profile Canopy design
VTX power switchable 25mw~200mw

Package includes:

• 1x 75mm Frame
• 1x DiamondF4 FR built-in SPI Frsky receiver or DiamondF4 FS built-in SPI Flysky receiver
• 4x EX0802 KV19000 Unibell brushless motor
• 1x HQPROP 40MMX2 propeller(4cw+4ccw)
• 1x Runcam Nano3
• 1x Built-in 5.8G 40ch 25mw-200mw VTX
• 2x 1s 650mah Lipo battery
• 1x Propeller disassemble tool
• 1x Screwdriver

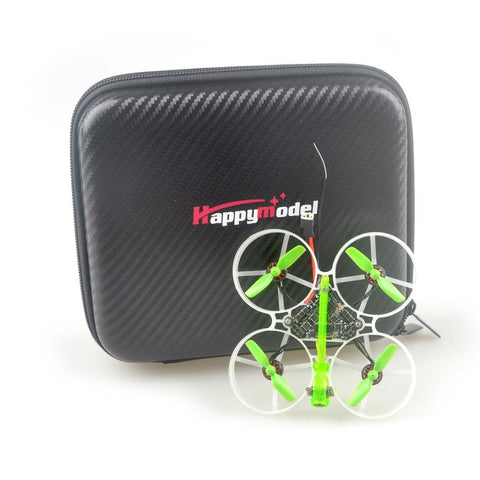

• 1x Happymodel Carry case

Spare parts specifications:

Motor

• Model: EX0802 19000KV
• Configuration:9N12P
• Stator Diamter:8mm
• Stator Length:2mm
• Shaft Diameter:Φ1mm
• Motor Dimension(Dia.*Len):Φ10.5mm*14.9mm
• Weight(g):1.7g
• No.of Cells(Lipo):1S only

Flight controller

• (Frsky SPI RX version) DiamondF4 FR FC Firmware target: CrazybeeF4FR
• (Flysky SPI RX version)DiamondF4 FS FC Firmware target: CrazybeeF4FS
• MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
• Sensor: MPU-6000(SPI connection)
• Original whoop size compatible
• Power supply: 1S battery input (DC 2.9V-4.35V)
• Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
• Built-in Betaflight OSD(SPI Control)
• Built-in 5.8G VTX
• Built-in SPI Frsky/Flysky receiver
• Built-in 5V 1A BEC

Onboard 4in1 ESC

• MCU upgraded to EFM8BB21
• Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)
• Support BLHeliSuite programmable
• Factory firmware: O_H_5_REV16_8.HEX
• Default protocol: DSHOT600

Onboard Frsky SPI D8 receiver Version

• SPI BUS receiver Frsky D8 compatible
• Compatible Non EU transmitter D8 modelChannels: 8ch
• Failsafe support
• No ground interference ( Transmitter and receiver 1 m from the ground): 200m~300m

Onboard Flysky SPI receiver Version

• SPI BUS receiver
• Protocol: AFHDS and AFHDS-2A Switchable
• Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
• No ground interference ( Transmitter and receiver 1 m from the ground): 200~300m
• Failsafe support

Onboard 5.8g VTX

• Output power: 25mw~200mw switchable
• Frequency: 40CH
• Input voltage: 3.3V 5.5V
• Current consumption: 300mA(type)
• Frequency: 5.8GHz 5bands 40 channels(include Race band) Smartaudio ready

Runcam Nano3

• Model: RunCam Nano 3
• Image Sensor: 1/3″ CMOS
• Horizontal Resolution: 800TVL
• Lens : 2.3mm(M6.5) FOV 140°
• Signal System: PAL/NTSC Non Switchable
• S/N Ratio: >50dB
• Electronic Shutter Speed: Auto
• Auto Gain Control (AGC): Auto
• Min. Illumination: 0.01Lux@1.2F
• D-WDR: Auto
• Day/Night: Color
• Power:DC 3-5.5V
• Current: 110mA@5V 120mA@3.3V
• Housing Material: ABS
• Net Weight: 1.2g
• Dimensions: L14mm*W14mm*H9mm

Lipo Battery

• Capacity:650mAh
• Voltage:3.8v
• Continuous Discharge Rate: 30C
• Instantaneous discharge rate: 60C
• Size: 60mmx18mmx8mm
• Weight: 16g
• Connector: PH2.0
