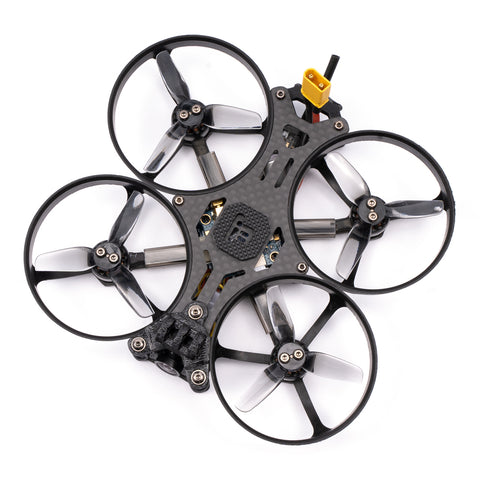

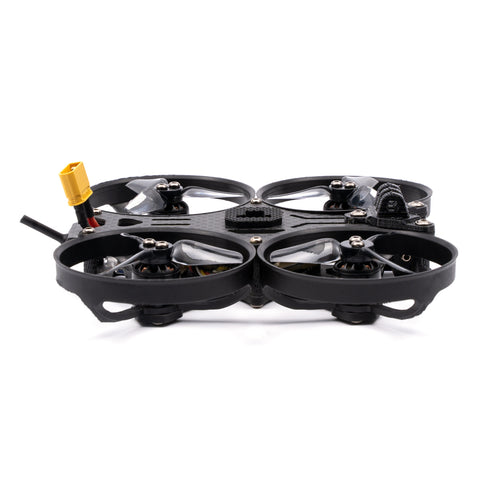

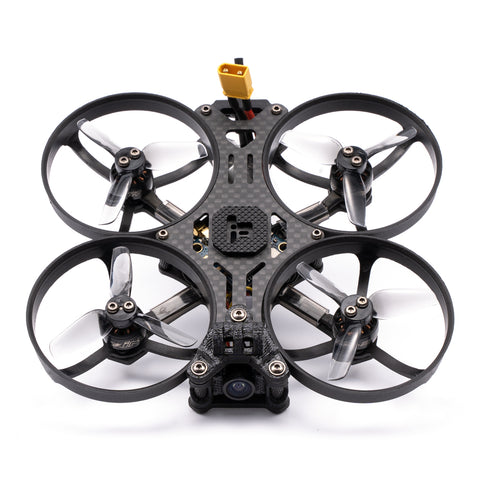

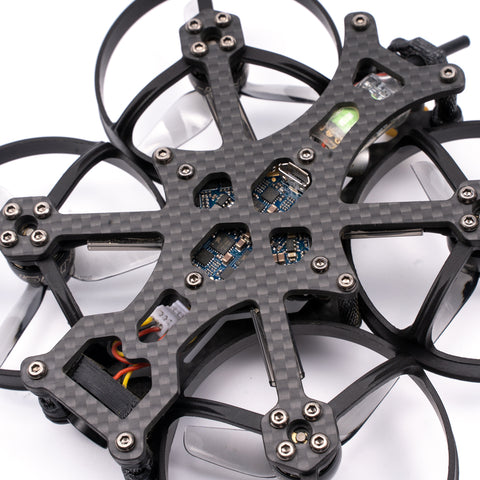

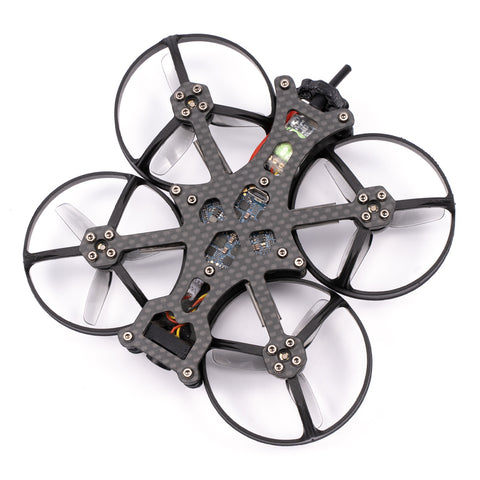

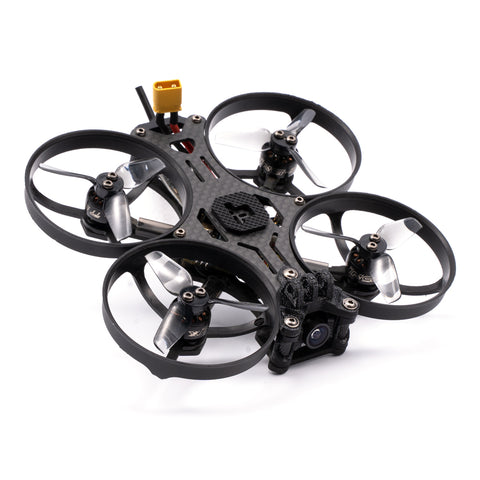

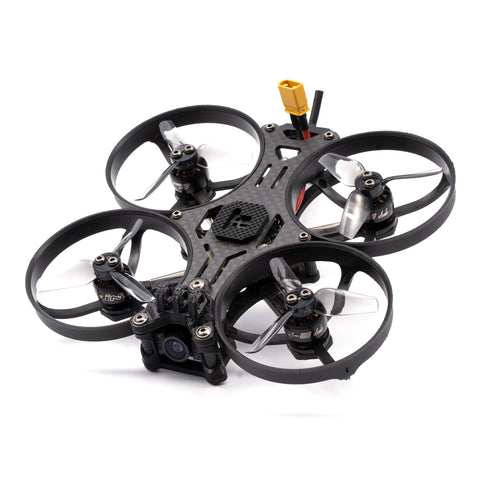

iFlight ProTek R20 Analog FPV Drone 3S Cinewhoop Quadcopter BNF ELRS

  • $185.00
  • Save $37

Product Description:

iFlight ProTek R20 Analog FPV Drone 3S  Cinewhoop Quadcopter BNF ELRS 2.4G



Don't worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!

To restore lost tunes or updates, please check our linked article on "Firmware/Factory Dumps"

Angle-Mode (self balancing level mode) is enabled by default to make sure your first flight doesn't end in a mess!

Please check our linked article on "How to disable Angle-Mode, activate Acro-Mode"

ProTek R20 BNF Specs:

  • VTX: SucceX Mini Force 5.8GHz 600mW VTX Adjustable
  • Weight: 89.2g (without battery)
  • Bottom plate thickness: 2.5mm

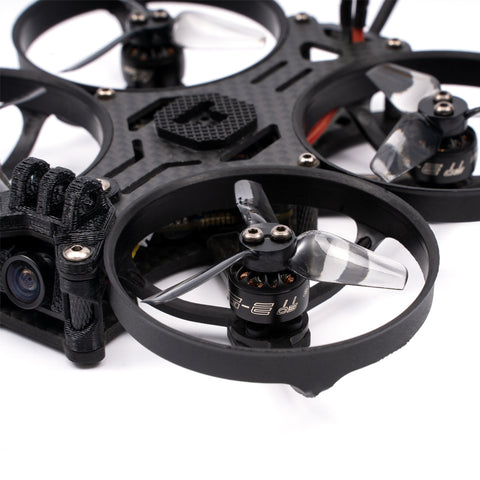

  • Motor: XING-E 1105 6500KV
  • Top plate thickness: 1.5mm
  • Body Size: 132mm*122mm
  • FC pattern: 25.5*25.5mm

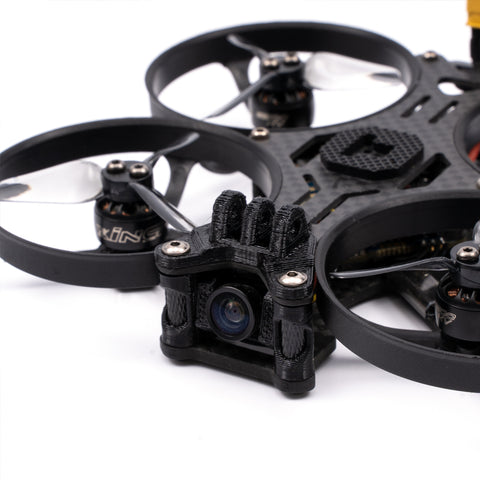

  • FPV cam spacing: 14mm
  • Whoop F4 AIO 1.1
  • Arm Thickness: 2.5mm
  • Propeller size: 2 inch
  • Wheelbase: 94mm


AIO//Whoop AIO F4 V1.1 AIO

  • Mounting pattern: 25.5*25.5mm/φ3mm
  • Firmware Target: IFLIGHT_F411_PRO
  • Constant current: 20A,25A (Burst)
  • Config:IFLIGHT_F411_PRO.config
  • Connector: Micro-USB
  • ESC Firmware: Q-H-15
  • Current sensor: yes
  • BEC output: 5V 2A
  • ESC Telemetry: NO
  • Size: 30.5*30.5mm
  • MCU: STM32F411
  • BLHeli: BLHeli-S
  • Barometer: NO
  • Blackbox: 8MB
  • Gyro: BMI270
  • INA pad: nR2
  • Weight: 7.4g
  • Input: 2-4S

VTX//SucceX Mini Force 5.8GHz 600mW VTX Adjustable

  • Power: PIT/25/200/400mW/600mW
  • Antenna interface: MMCX
  • VTX protocol : IRC Tramp
  • Output 40 channels.
  • Size: 29*29mm
  • Mounting pattern: 20*20Φ3/25*25 mmΦ2
  • Weight: 4g

ProTek R20 Analog Quad BNF Included Components and Parts

pre-built and tested Quadcopter

  • 1x iFlight Lipo Strap 10*150mm (Color May Vary)
  • 2x HQ 2*2*3 (Set of 4 - Color May Vary)
  • 1x ProTek R20 AnalogBNF
