DarwinFPV X9 Long Range 9 Inch FPV Analog Drone ELRS

  • $288.00
  • Save $88

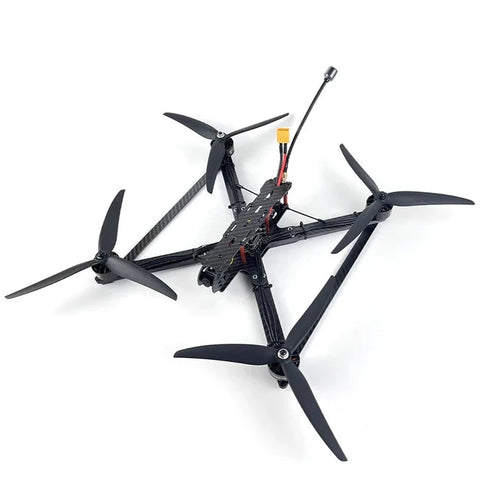

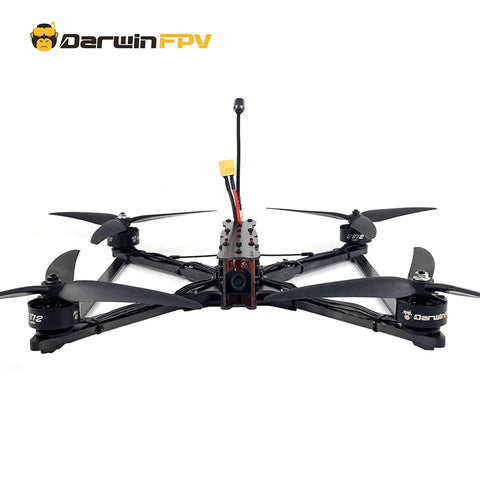

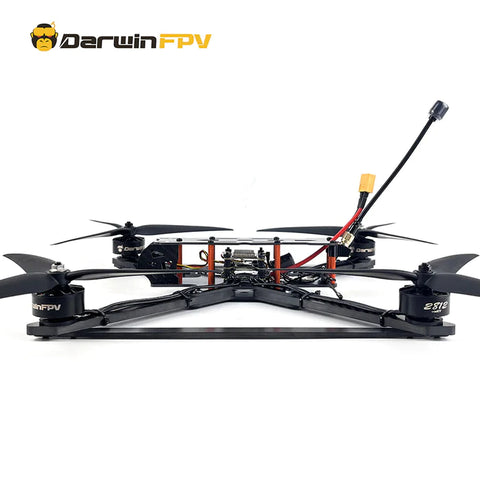

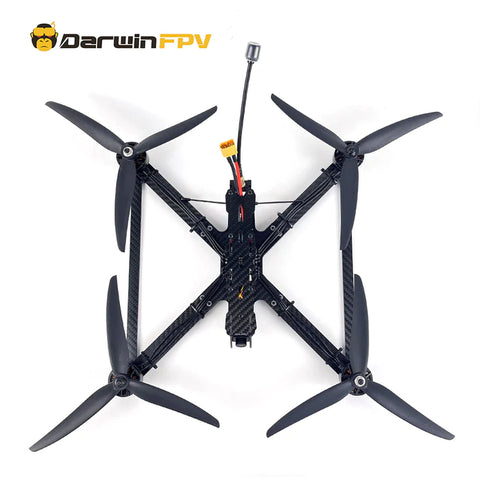

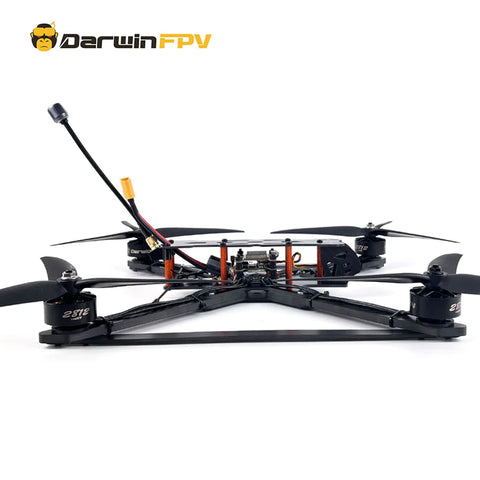

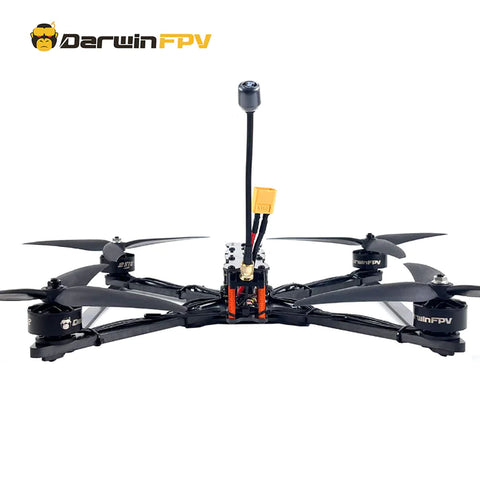

DarwinFPV X9 Long Range 9 Inch FPV Analog Drone BNF ELRS

Darwin X9 is a 9-inch heavy load fpv drone. It is equipped with 2812 motors, 1000mW analog video transmission, F4 flight control and 100A ESC. It is a real monster in the sky and it can fly with you anytime, anywhere!



Features:

Large size 2812 motor, with very strong loading capacity and durable performance.
The new 1000mW analog VTX, with DarwinFPV dedicated receiving antenna, can provide a longer flight distance.



Specifications:

  • Model : Darwin X9 Analog Version
  • Video :  Non(can be attached to the action camera)

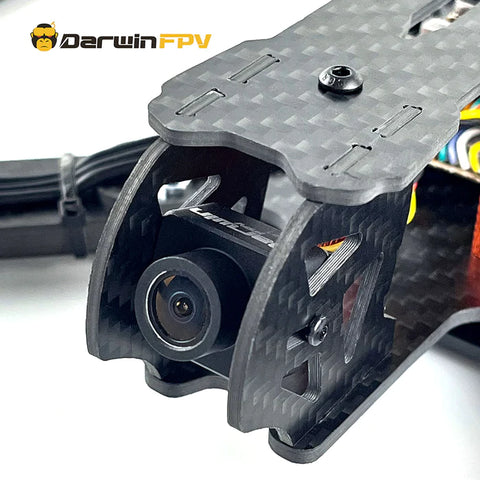

  • Camera : Darwin "cement" waterproof camera
  • VTX 5.8G 1000mW VTX

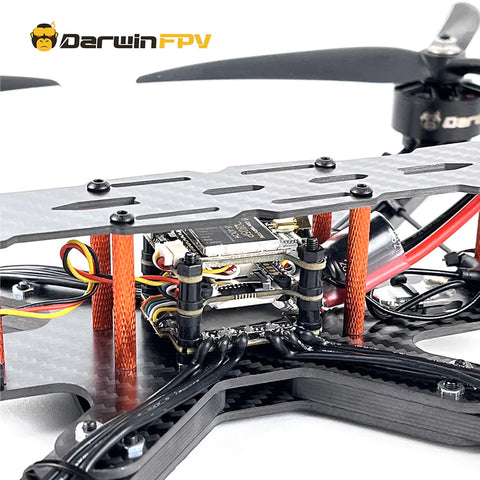

  • FC : 3-6S F405 MPU6500
  • ESC : "Cement" 100A 3-6S BLHeli_32 128kHz 4in1
  • Receiver:  TBS Nano/ELRS/PNP(Reserve 4Pin plug)
  • GPS:  Non

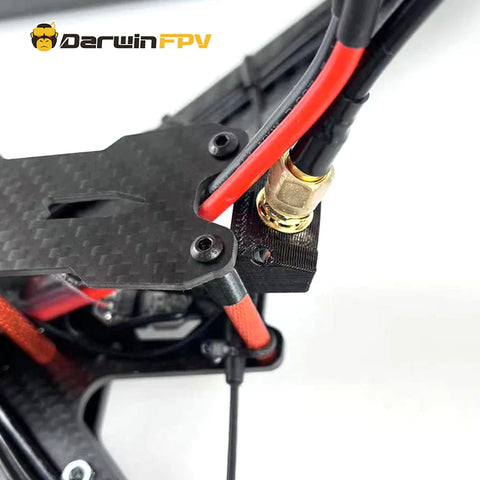

  • VTX Antenna:  5.8G LHCP RP-SMA 150mm antenna

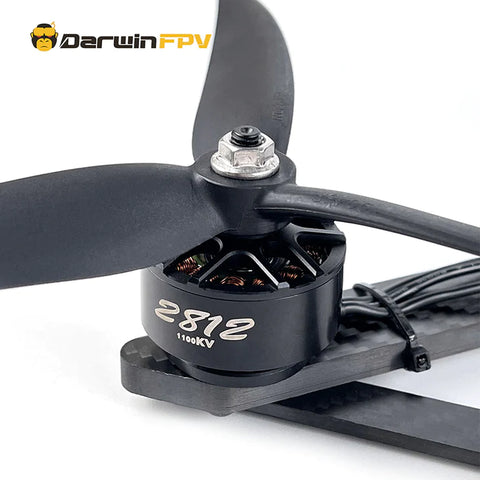

  • Motor:  2812 - 1100KV
  • Propeller : GEMFAN 9045-3 Black (2CW, 2CCW)
  • Frame type : True-X
  • Wheelbase:  363mm
  • Arm thickness:  6mm
  • payload capacity:  1.5kg-2.5kg
  • Furthest flight distance:  3km
  • Maximum horizontal speed:  170km/h
  • Maximum take-off altitude:  6000m
  • Maximum wind resistance level : Level 7
  • Operating temperature range: :  -10℃-40℃
  • Battery life (using 6S 8200mAh 60C battery):
  • parallel cruise no load 33 mins
  • cruise and load 1.5kg 10 mins
  • cruise and load 2 kg 7 mins
  • cruise and load 3 kg 4 mins

The data is for reference only, and factors such as different environments, usage methods, and firmware versions may have an impact on the test data
Freestyle

  • Recommended battery: 6S 6500-8500mAh
  • Dimensions(without propeller) (L×W×H):280mmx295mmx50mm

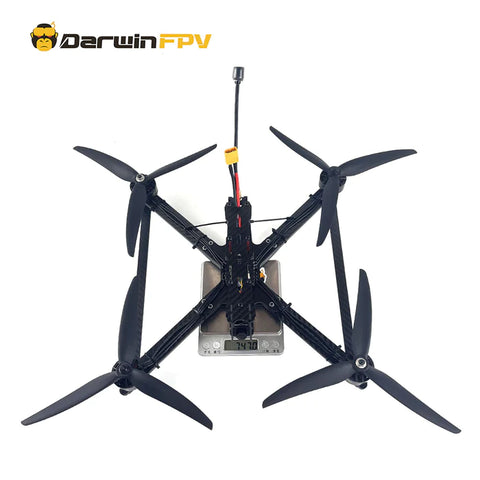

  • Weight(without package) : 747g±5g
  • Package Size : 314mmx326mmx74mm
  • Weight(with package) : 1100g±5g



Packing List:

  • 1x Darwin X9 Long Range FPV Drone
  • 1x GENFAM 9045-3 propeller (Set Of 4)
  • 1x 120mmx120mm sticker
  • 1x 20mmx260mm battery strip
  • 4x M5 flange nut
