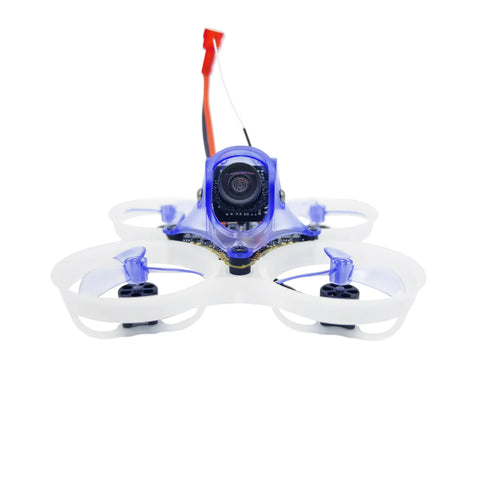

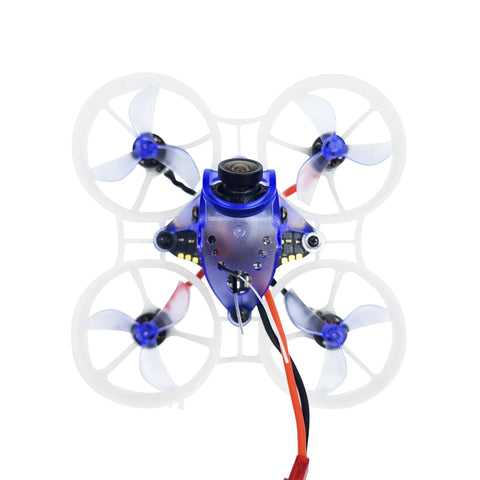

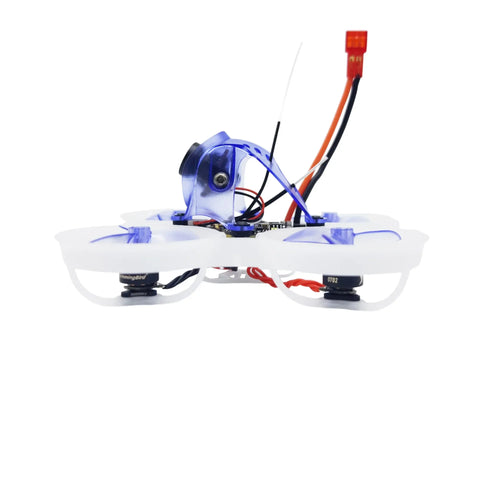

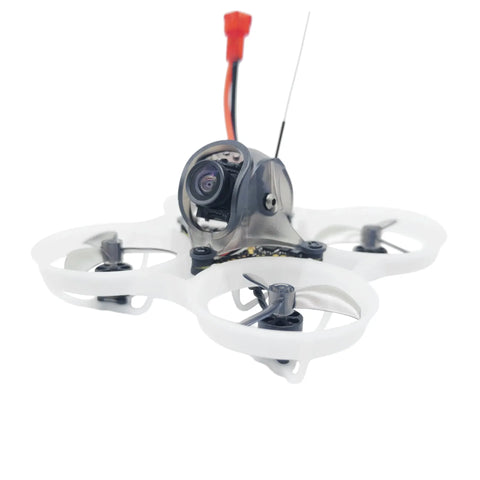

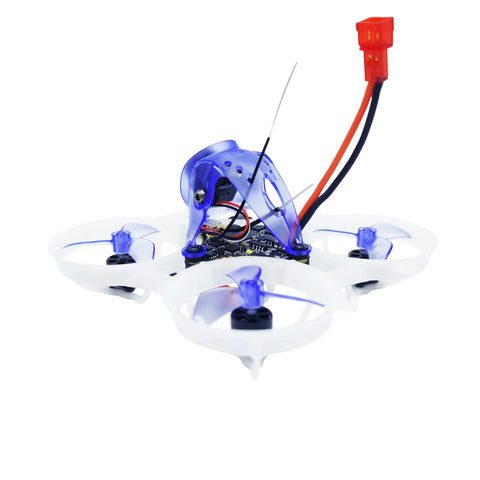

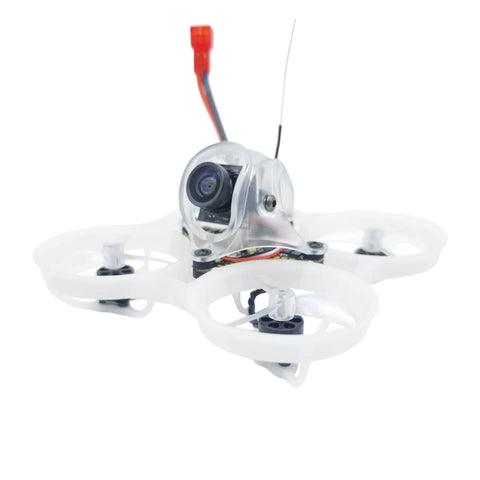

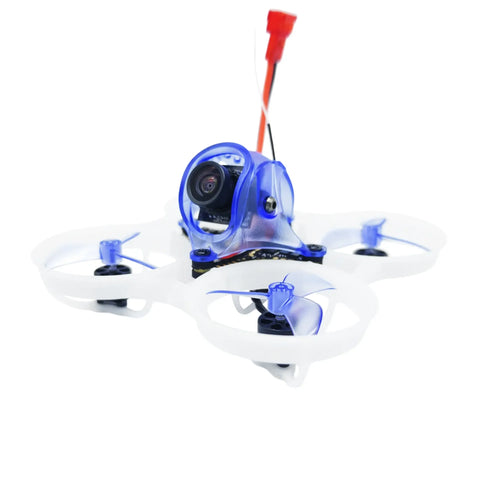

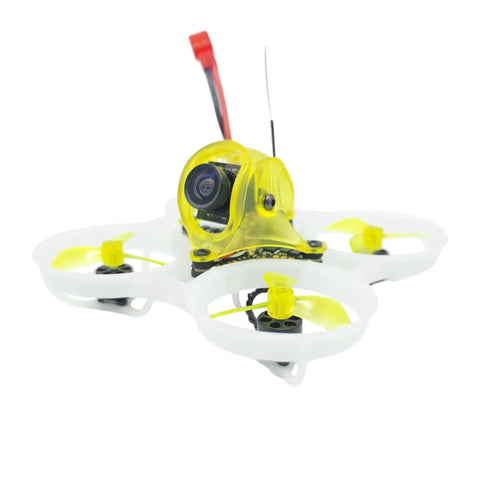

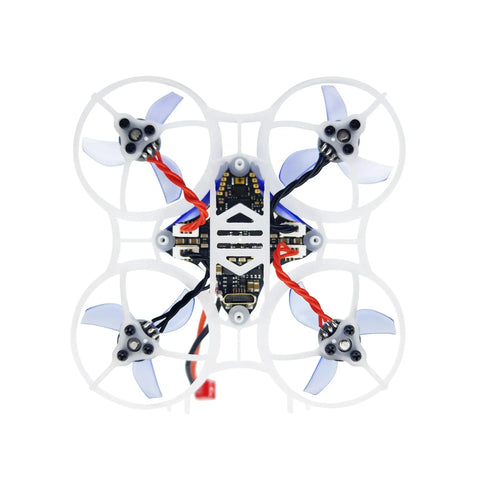

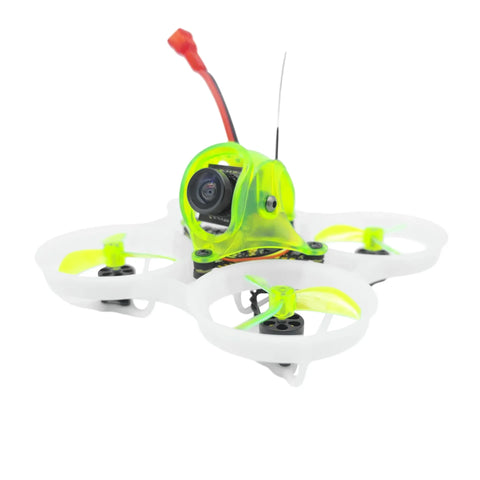

NewBeeDrone Hummingbird V4 BNF Whoop ELRS
ALL Hummingbird V4 comes with Random Color
Specifications:
Drone Size: 65mm
Flight Controller: Hummingbird V4 with SmartMax 400mw VTX ELRS2.4G AIO Flight Controller
Frame: Cockroach V3 65mm Brushless Ultra Light Frame
Motors: Hummingbird 0702 Motor 30000KV Available Soon
Propellers: Azi Tri-Blade 31mm Propeller Random Color
Camera: BeeEye Camera
Canopy: Goober Canopy v2 Random Color with Camera 3DPrinted adapter
Total Weight of the Drone without battery:
-19.5g (PP Material Cockroach65 v3 frame)
Hummingbird V4 ELRS AIO Flight Controller Specs:
MCU: STM32F411
GYRO：BMI270
VTX: 25mw for Racing/ 100mw and up to 400mw SmartMax temperature control with BeeTX 5.8Ghz Antenna
ESC: 12A BLHeliS pre-flashed with Bluejay 0.19.2 Target: O-H-10 48kHz
ESC Connector: JST-1.0 3Pin
OSD: NBD7456 Graphical OSD compatible with Betaflight OSD
Receiver: ELRS 2.4G Antenna with MHF3 connector
Flight Controller Weight: 4.57g(Include antennas and battery connector)
Flight Controller Size: Outer dimensions: 29x29x7.6mm
Flight Controller Holes: 25.5x25.5mm
Battery input: 1S Only
Uart1: free
Uart2: free
Power Plug: Nectar Connector Gold Plated PH2.0 Solid Pin
SPI ELRS3.x receiver (Binding instruction: power on the drone, push the bind button under the flight controller to get into bind mode. If your remote control is not ELRS3.x or above version. You will need to update your remote controller ELRS to 3.x version because betaflight 4.5 will no longer support any lower version of 3.0)
Please read through the SPI base information if you have difficulty with binding
Firmware:
1. Hummingbird V4 Betaflight firmware
What’s included:
- 1x Hummingbird V4 BNF Whoop with SmartMax 400mw VTX ELRS2.4G
（Batteries are not included with the product.）
- 1x Azi Prop 31mm 1.0 random color. 1set.
