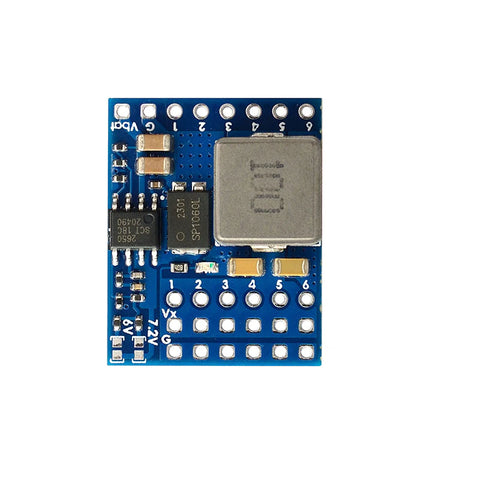

Matek SERVO PDB With BEC 5.5-36V To 5-7.2V

  • $9.00



Matek SERVO PDB With BEC 5.5-36V To 5-7.2V

Applications:

  • Flight controllers without dedicated BEC for servos
  • Reduces circuit loss and voltage drop on servo power wires for big scale RC Airplane


Specifications:

  • 5.5V to 36V Operating Input Range
  • Vx for servos,  5V, 6V, 7.2V, 8.2V Adj. Default is 5V.
  • 4A Continuous load current, 7A Burst
  • Maximum Duty Cycle: 100%,   when input voltage< setting value,  Regulator output voltage = Input voltage
  • Output Short-circuit tolerant (3 seconds)
  • No protection for reversed input polarity
  • Pins distance: 2.54mm
  • Size & Weight: 26 x 21 x 5mm, 4g


Includes:

  • 1x Matek Servo PDB W/ BEC 5.5-36V to 5-8.2V
  • Dupont 2.54mm pins



Wiring Diagram:
