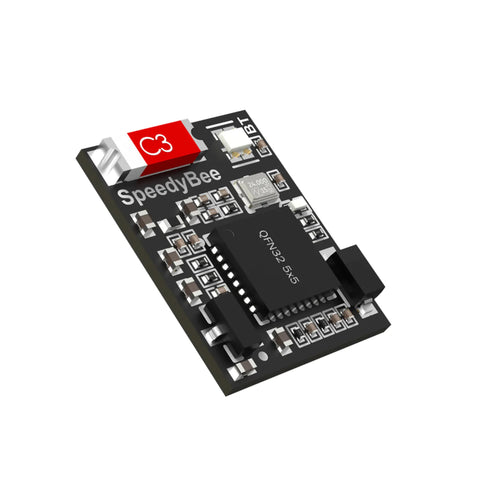

SPEEDYBEE BT Nano 3 Wireless Flight Controller ESC Configurator (2PCs)

  • $16.00



SPEEDYBEE BT Nano 3 Wireless Flight Controller ESC Configurator (2PCs)

Add bluetooth functionality to any quad with the SpeedyBee BT Nano 3. This adapter lets you change ESC and Flight Controller settings wirelessly with the SpeedyBee app!



SPECIFICATIONS

Operating Voltage 5V
Working Current ~10mA
Bluetooth Low Energy Supports
WiFi Supports. It will be turned on automatically only when upgrading the firmware of the module itself.
Communication Port UART
Baudrate 115200
Bluetooth Automatically Turns Off Enabled by default, the module will automatically detect the armed/ disarmed status of the FC. During the flight of the drone, the Bluetooth function will be disabled to prevent other wireless devices from being interfered by the Bluetooth signal.
BT Switch Pad The Bluetooth function will be disabled when it receives a Low signal.In the BT Switch section of the manual, you can learn about the detailed instructions
Power Indicator Solid Red: Indicates that the module is powered.
Working Status Indicator

Flashing white: Indicates that the UART communication with FC is abnormal, please check whether the wiring and settings are correct.

Solid White: Indicates that the communication with FC is normal, you can use the App for wireless parameter adjustment

Flashing green: Indicates that the wireless signal is being connected

Solid Green: Indicates that the connection with the App has been successful

Size 14*11*0.8mm
Weight 5g


INCLUDES

  • 2x SpeedyBee BT Nano 3 W/ Pre Soldered Wires
  • 2x 29 AWG 75mm wire
  • 4x 3M Double-sided Tape 14mmx30mm
  • 2x 8mm Diameter Heat Shrink Tube
