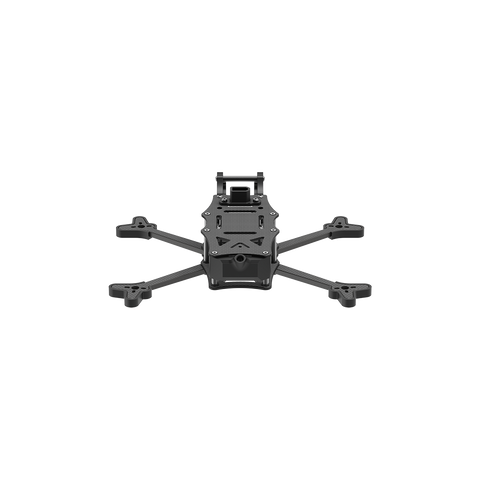

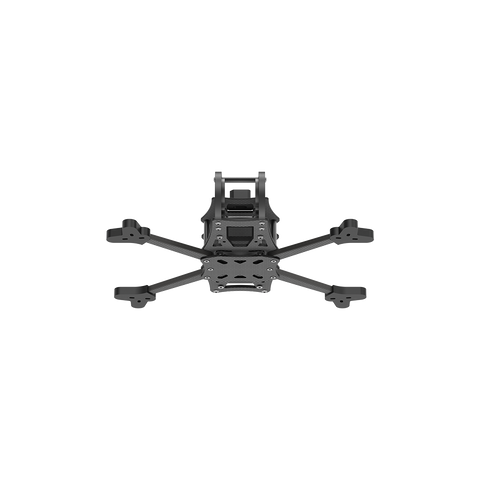

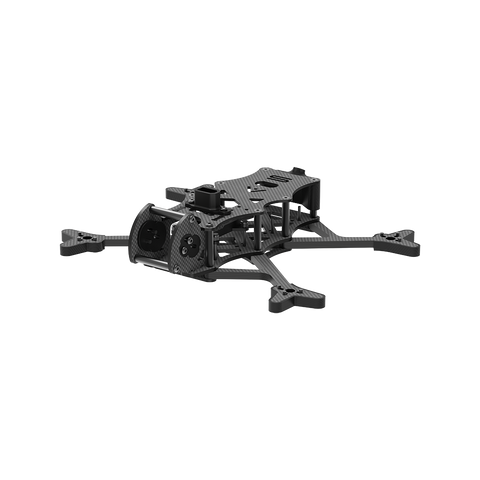

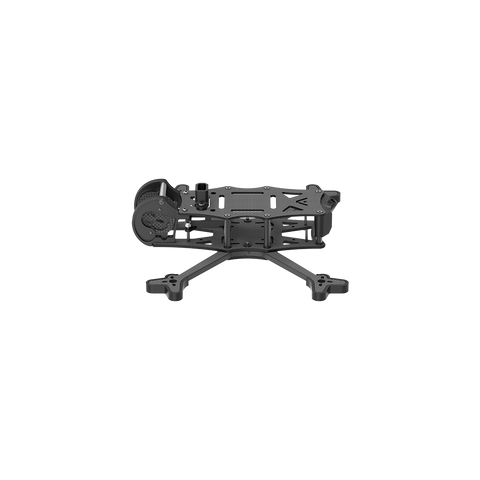

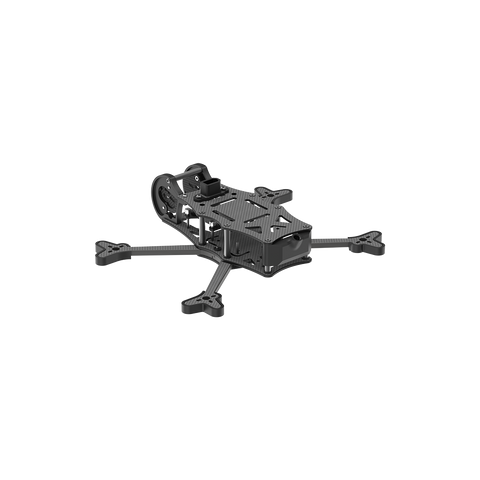

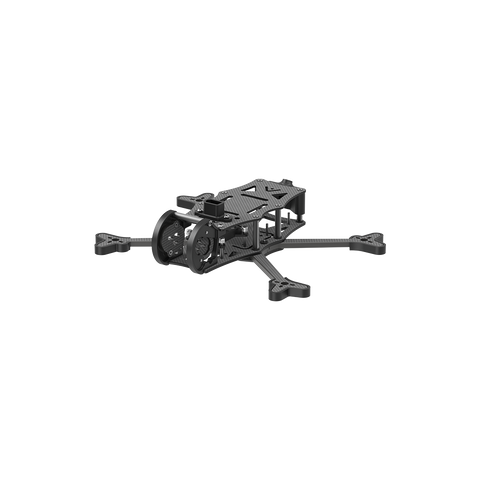

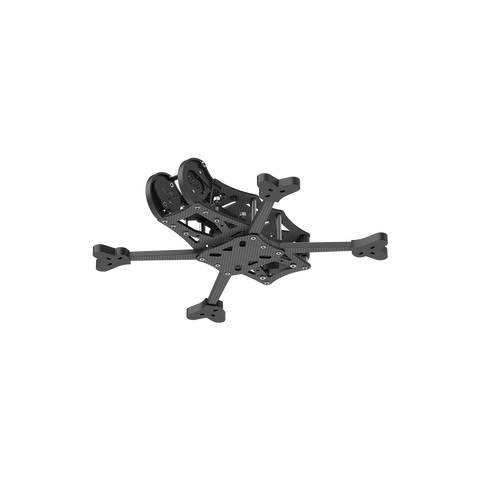

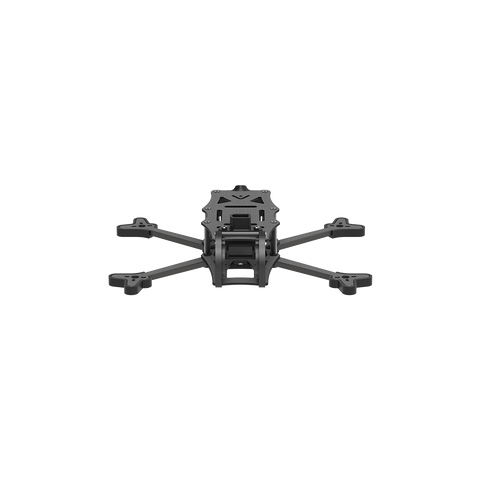

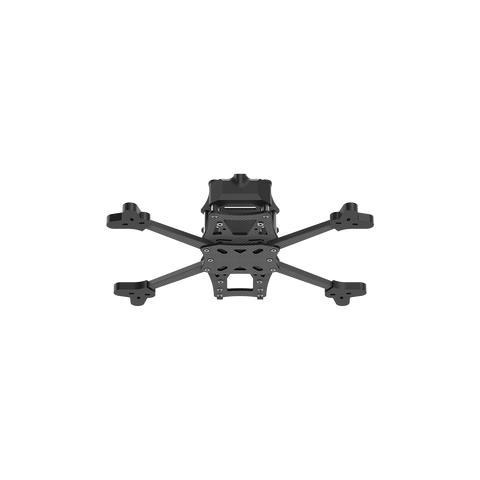

iFlight AOS 3.5 EVO V5 Frame Kit

  • $70.00



iFlight AOS 3.5 EVO V5 Frame Kit

Description

Discover the future of sub 250g FPV with the AOS 3.5 V5, engineered to revolutionize your freestyle experience. Designed with cutting-edge patent pending technology and premium materials, here's why the AOS 3.5 V5 is the ultimate choice for drone enthusiasts.

Features

  • Supports up to 3.5" Props
  • AOS X-Cell Anti-Vibration Technology
  • Up to two 25.5x25.5, or 20x20 mm stacks
  • 155° FOV no props in view
  • Fully DJI O3 compatible (soft mount + ND filters)
  • Supports 19-20mm cameras (hard or soft mounted)
  • Reinforced 7075 Aluminium Camera Cage
  • Supports Lengthwise or Toilet Tank battery mounting
  • ⌀9 - ⌀12mm motor mounting (supports all standard 3 - 4" motors)
  • 27x21mm M2 GoPro Mounting Pattern
  • 32mm Rear Standoff Spacing (compatible with all AOS 3.5 antenna mounts)



Specifications

  • Product Name: AOS 3.5 V5 Frame Kit
  • Frame wheelbase: 162mm
  • Frame Dimension: L133*W93*H30 mm
  • Arm Thickness: 4mm
  • Top Plate Thickness: 1.5mm
  • Bottom Plate Thickness: 1.5mm
  • Upper Plate Thickness: 2mm
  • Max Flight Stack Height: 20mm
  • Max VTX Height: 20mm
  • Motor Mounting: 9x9-φ2mm/12x12-φ2mm
  • Flight Stack Mounting: 20*20 Φ2mm / 25.5*25.5 Φ2mm
  • VTX Mounting: 20*20/Φ2mm / 25.5*25.5/Φ2mm
  • Weight: 68g
  • Compatible: DJI O3 air unit/ Vista HD system/ BLITZ Whoop 1.6W VTX



Packing List

  • 1x AOS 3.5 V5 Frame Kit
  • 1x TPU Parts
  • 1x Screw Bag
  • 2x Battery Strap
  • 2x Battery pads
