EMAX ES9052MD Metal Gear Digital Servo

  • $11.00



EMAX ES9052MD Metal Gear Digital Servo

The EMAX ES9052MD servo offers powerful performance in an incredibly small size. Despite being an all-metal gear servo, 4.3g weight is maintained in order to not heavily weigh down any aircraft or robotics for full maneuverability. Featuring a coreless motor, the ES9052MD is able to fit perfectly on any aircraft as a powerful upgrade or alternative with maximum strength. With the accuracy of digital, paired with the long lifespan of metal, the ES9052MD is a standard in servos for years to come.



Features

  • Metal Gears for ultimate reliability
  • Digital for the smoothest operation



Specifications

  • Operations Voltage: 3.8-6V
  • Direction: Counter Clockwise / Pulse Traveling 1500 to 1900 μ sec
  • Stall Torque at 3.8V: 0.42kg/cm max
  • Stall Torque at 6.0V: 0.65kg/cm max
  • Speed at 3.8V: 0.11 sec/60* (zero load)
  • Speed at 6.0V: 0.07 sec/60* (zero load)
  • Size: 25.5x19.9x8.3mm
  • Weight: 4.8g
  • Plug: JR
  • Cable Length: 180mm
  • Head Splines: 15T
  • Maximum Travel: 160°
  • Gears: Metal
  • Operation: Digital

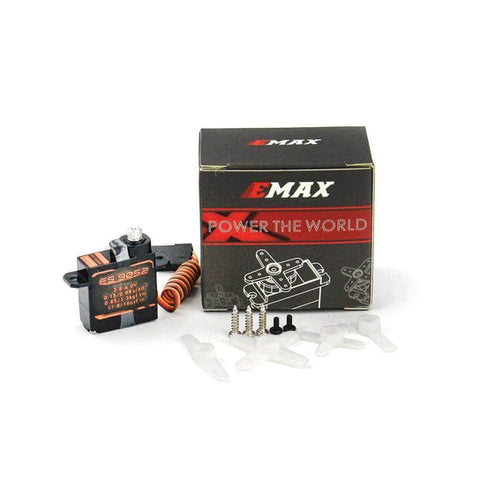

Includes

  • 1x EMAX ES9052MD 5.5g Metal Gear Digital Servo
  • 3x Plastic Servo Horns
  • 1x Mounting Hardware Set
