iFlight XING-E 2306 1700Kv 2-6S FPV Motor
PRODUCT DESCRIPTION
XING-E series are very strong and powerful FPV motors for FPV racing, great value choice with well known XING performance. focus on quality, the XING-E series affordable motors that are strong and durable.
This 2306 sized motor features a high-strength 4mm steel hollow shaft, Single strand windings for performance, M3 shaft screw, and larger 9x4x4mm NSK bearings.
Features:
-High-strength 4mm Steel shaft
-N52SH High-temperature magnets, NSK bearings
-16x16mm hole pattern
-Single strand copper winding
-6061 CNC machined aluminum top and base parts
-Hex bolt shaft set screw
Specifications:
-Configuration: 12N14P
-Stator Diameter: 24mm
-Magnets: N52SH Curved
-Bearing Size: 9x4x4
-Shaft Diameter: 4mm / Steel
-Base Mounting Pattern: 16x16mm M3 Thread
-Motor Dimension:29.5x18.7mm

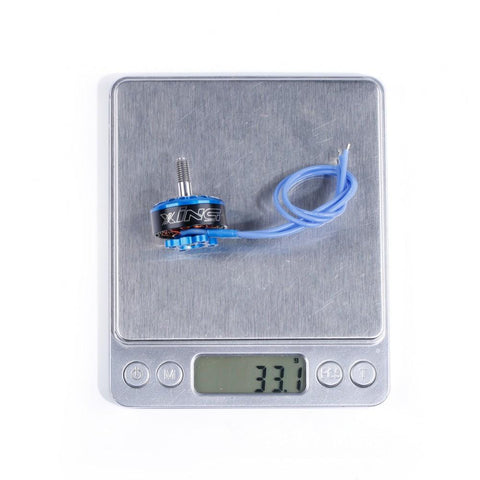

-Weight:33.1g (150mm wires)
-Idle Current @12.6v (Io):2.1A
-Cells (LiPo): 2-6S
-Max Burst Current <10s:55.22A
-Max Power (W) 60s:885.4W
-Internal Resistance (Rm): 40.6mΩ
-Motor Wire Length: 150mm / 20AWG
Package included:
1 x MOTOR XING-E 2306 motor
