GEPRC SMART 35 Analog 3.5 Inch Micro 4S Freestyle Drone BNF ELRS
GEPRC Phantom HD Analog Freestyle(SMART 35 HD Freestyle) , The brand new 3.5-inch Freesyle Quadcopter of GEPRC Phantom series. There are two versions of SMART 35 HD Freestyle: Vista Nebula nano and Analog 5.8G 600mW.
The SMART 35 Freestyle is a small, lightweight freestyle FPV. If you are looking for a small, freestyle and faster FPV, SMART 35 Freestyle is your best choice.
SMART 35 Freestyle is the first choice of 3.5-inch Freestyle Drone. High efficiency power system, GEPRC 1404-3850KV motors and 3.5*2.8*3 propellers, Combining with the latest superior GEP-F4-35A AIO flight control system and VISTA HD image transmission system, It could be easily reach stable and flexible flight experience through abundant testings and Flight Analysing, If equipped with a 1100mAh battery, the flight time is 13 minutes, and Even bring the Gopro Lite camera it can fly 12 minutes.

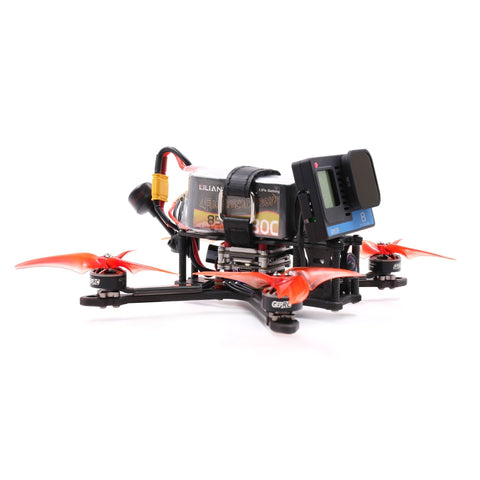

SMART 35 Freestyle was independently designed a GoPro Camera mount, with Gopro Hero 8 Naked Camera, Recording 4k 60 fps Magnificent Shooting During Racing and Freestyle condition.
First and last, this is a wonderful 3.5-inch Freesyle Quadcopter. It is Light-weight, Flexible and has excellent flight performance.The GEPRC Phantom 35 HD Freestyle is an impressive product that delivers high-quality video and brings unrivalled Whoop Freestyle.
- Sub-250g Micro Freestyle ToothPick Drone.
- Equipped with 600mw Analog VTX.
- Use 1404-3850kv motor, high efficiency and incredible power.
- The 3.5-inch lightweight design is suitable for freestyle flight.
- Using the mainstream F411 AIO flight system, the electronic system runs more stably.
- Independent design of GoPro Hero8 Naked Camera 3D Print Mount, which can carry GoPro6 / 8 and Insta Go2.
- Brand: GEPRC
- Model: SMART 35 Analog
- Frame: GEP-ST35
- Wheelbase: 155mm
- The thickness of the top plate: 2.0mm
- The thickness of the bottom plate: 4.0mm
- The thickness of the arms plate: 4.0mm
Flight Controller System：GEP-F411-35A AIO
- MCU: STM32F722
- IMU: MPU6000(SPI)
- OSD: BetaFlight OSD w/ AT7456E chip
- Firmware target: GEPRCF411-35A AIO
- Power input: 4S LiPo
- VTX: STABLE 5.8G 600mW
- Camera: Caddx Ratel V2
- Antenna: Momoda 5.8g MMCX RHCP
- Motors: GR1404-3850KV
- Props: 3.5*2.8*3

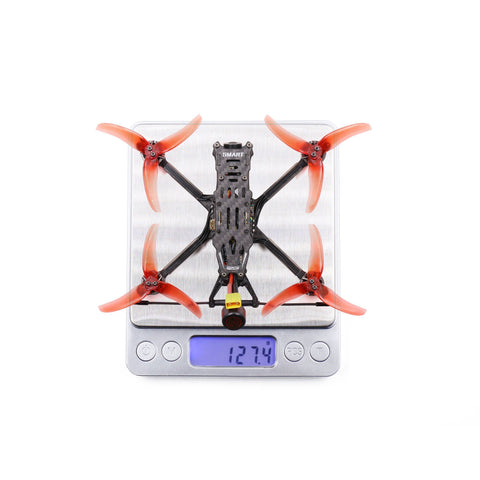

- Weight: 127.4g
- Receiver: ELRS 2.4G
Motors & Batteries Recommended:
- Motors: GR1404-3850KV
- Battery: XT30 Lipo 4S1P 550mAh – 1300mAh
- Get Battery Here: 850mAh 4S XT30
- 1 x SMART 35 Analog Quads
- 2 x 3.5*2.8*3 Props(Pairs)
- 8 x Foot pad
- 1 x The silicone pad
- 1 x L-shaped screwdriver
- 2 x Antenna protection tube
- 1 x 15*200mm Battery strap
