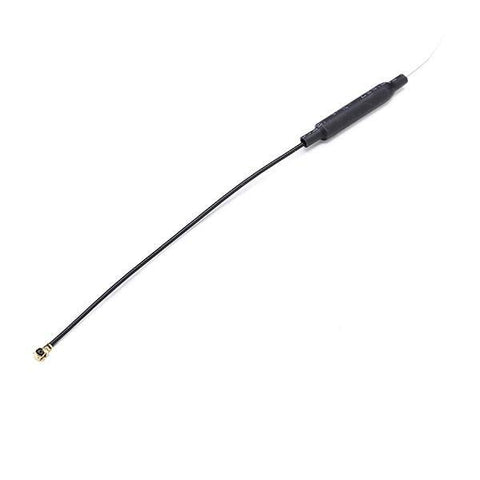

150mm 2.4G 2.5 dBi Receiver Antenna IPEX

  • $1.00



150mm 2.4G 2.5 dBi Antenna For FUTABA FRSKYJR FASST Receiver IPEX

Note:

The connector of these antennas will NOT fit latest frsky receiver like x4r-sb which are using IPEX micro connector. See photo below:



Electrical Specifications

  • Frequency Range(MHz): 2400-2500
  • Gain(dBi): >2.5
  • V.S.W.R. : <1.5
  • Polarization: Vertical
  • Non-Circularity(dB): ±0.5
  • Impedance(Ω): 50
  • Lightning Protection: Direct Ground
  • Maximum Input Power(W): 50



Mechanical Specifications

  • Connector Type:IPEX
  • Radiating Element Material:Copper
  • Radome Material:EVA
  • Radome Color: Gray
  • Dimension (mm):150mm(total length)
  • Wight(Kg): 0.009/12
  • Operating Temperature(℃):-40~+70
  • Reposition Temperature(℃):-55~+80



Package included:

  • 1x 150mm 2.4G 2.5 dBi Antenna for FUTABA FRSKYJR FASST Receiver IPEX Connector
