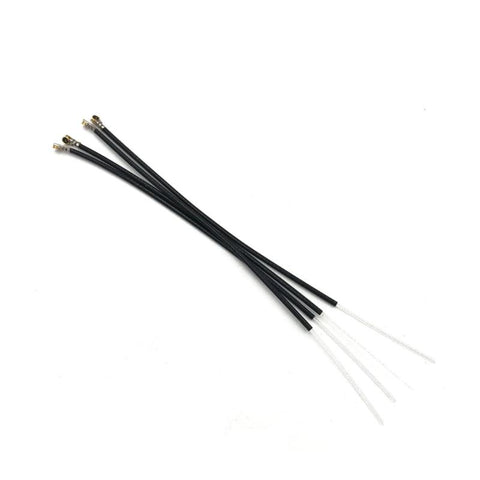

FrSky 150mm 2.4G IPEX4 Micro Receiver Antenna

  • $2.00



Frsky 150mm 2.4G Receiver Antenna IPEX4 Micro Connector for X4R X4RSB XM XM+



Note:

These antennas come with micro IPEX4 connector fits latest frsky receiver like x4r-sb But not for other receivers with normal IPEX(bigger) like Flysky X6B. See photo below:

Description:

  • Item:2.4G receiver Antenna
  • Frequency: 2400 ~ 2500 MHz
  • S.W.R. : less than 2.0
  • Antenna Gain: 2.0
  • Polarisation: Linear
  • Impedance: 50 Ohm
  • Cable Type: RG-113
  • Connector Type: IPEX4 (Micro)
  • Connector Pull Test: more than Kg
  • Operation Temperature: - 40 to + 65 Degree Celsius
  • Storage Temperature: - 40 to + 80 Degree Celsius
  • Color: White
  • Compatibility: Frsky X4R-SB
  • Wire Part Length: 120MM
  • Antenna Length: 150MM
  • Package Weight: 8g


Features:

  • For X4R-SB IPEX4 interfaces such as the use of 2.4G receiver antenna, high-quality gold-plated head.
  • Wire part of the length of 120MM, 30MM transparent part of the long line of total length of 150MM remote distance stable and normal.


Package Included:

  • 1x 2.4G Receiver Antenna 150mm IPEX Micro Connector
