FlyFishRC Osprey 40mm IPEX UFL RHCP Stubby Antenna 5.8Ghz

With its lightweight design, new 4-leaf construction, the FlyFishRC Osprey Antenna offers superb penetration, signal strength and clarity, and is now available to pilots at an incredibly attractive price.

The Osprey Antenna features a transparent casing, unique hybrid network, and is smaller than other 5.8GHz CP antennas, Dimensions(head): 14.1mm diameter. X 14mm height.

Although the Osprey Antenna is both small and light, it does not sacrifice any performance with high gain of up to 2.8dBi and 99% radiation efficiency. Moreover, it outperforms most other antennas in all categories. Sophisticated engineering gives this antenna a near-perfect circular shape for better range and penetration.

Its bandwidth covers the mainstream FPV 5.8GHz band with a 5.6GHz-6.0GHz frequency range. Regardless of a frequency you're on, you are guaranteed to have a signal as clear and strong as it’s possible.

The Osprey Antenna casing is made of impact-resistant polycarbonate material that is hermetically sealed to protect the antenna elements inside.


  • Gain: 2.82dBi
  • Frequency: 5.8GHz
  • V.S.W.R: ≤1.2:1
  • Radiation Efficiency: 99%
  • Polarization: RHCP
  • Connector: ipex/UFL
  • Dimensions(head): 14.1mm dia. X 14mm height.

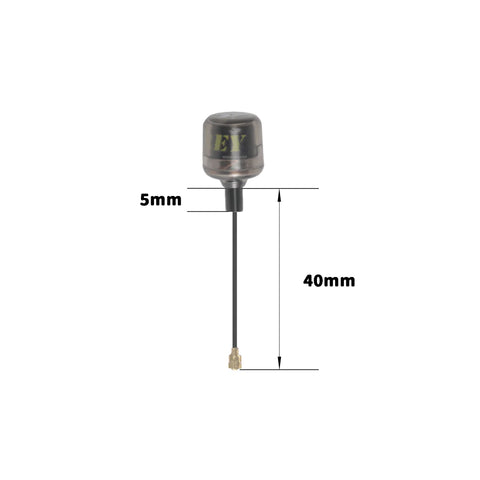

  • Length: 40mm
  • Cable: Resilient RG141 coax.
  • Colors: Transparent Black

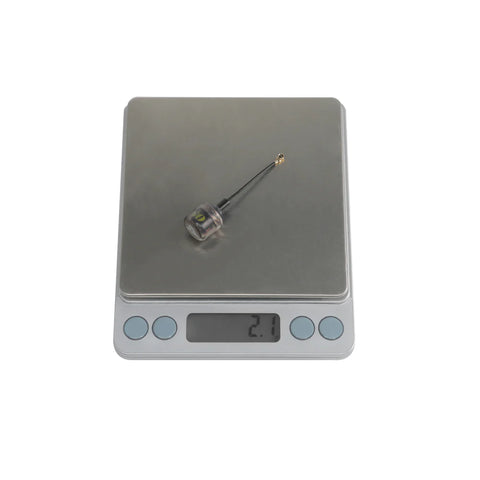

  • Weight: 2.1g


  • 1x FlyFishRC Osprey 5.8Ghz IPEX/UFL Stubby Antenna - RHCP 40mm
