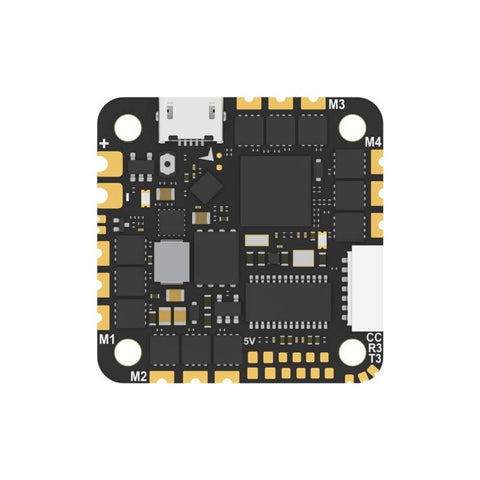

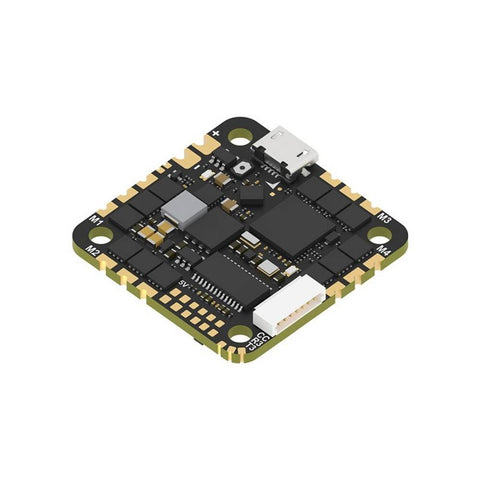

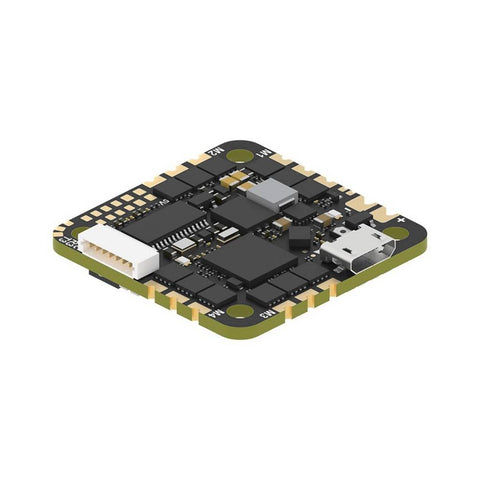

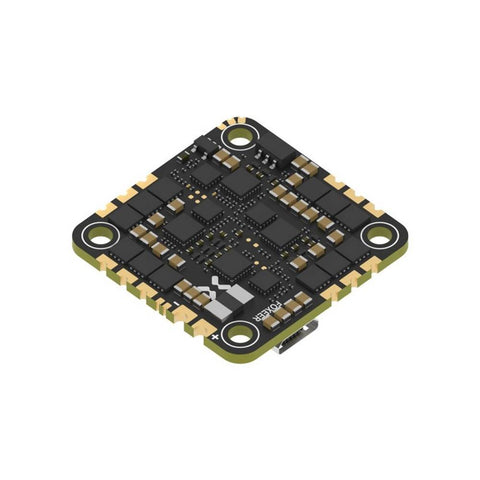

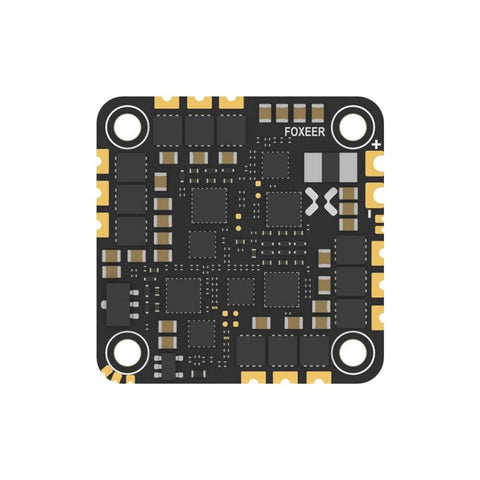

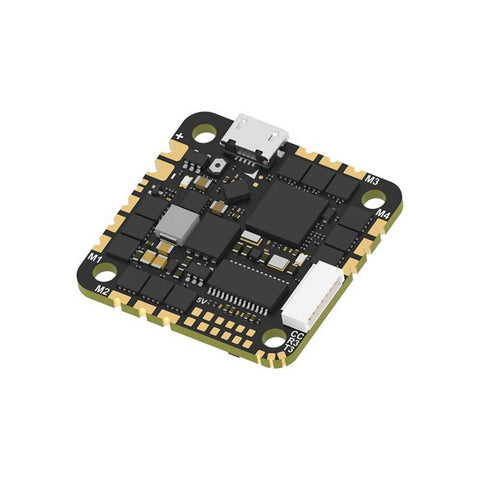

Foxeer Reaper F745 AIO V4 F7 FC + 45A 2-6S BLHeli_S Bluejay 4IN1 ESC

  • $83.00
  • Save $28



Foxeer Reaper F745 AIO V4 F7 FC + 45A 2-6S BLHeli_S Bluejay 4IN1 ESC

The Foxeer Reaper F745 AIO V4 features an F7 flight controller and a 45A 2-6S BLHeli_S 4-in-1 Bluejay ESC.



Features

  • 45A BLHeli_S ESC with Bluejay Firmware
  • F745 Flight Controller
  • 16M Blackbox
  • 5 UARTs



Specifications

  • Firmware: Bluejay: G-H-30-96-v0.16/ BLS: G-H-30 16.7
  • ESC Programming: Bluejay(default)/BLHeli-S optional
  • Continuous /Burst Current: 45A x 4/ 50A x 4
  • Mounting Hole: 25.5X25.5mm, Φ3mm/M2
  • Fireware: BF: FOXE-FOXEERF745V4_AIO
  • Input Voltage: 2~6S Lipo
  • DJI/Vista Connector: Supported, 7pin
  • Power Supply: 2~6S Lipo
  • Working Temperature: -20℃ ~ +55℃
  • Storage Temperature: -20℃ ~ +70℃
  • Stick Programming: Supported
  • Model: FOXEER Reaper AIO V4
  • Black Box: 16M Flash Memory
  • Working Humidity: 20~95%
  • Input signal: Dshot300/600
  • Current sensor: Supported
  • BEC Output: DC5V/2.5A
  • Size: 32.5X32.5mm
  • Current scale: 100
  • CPU: STM32F745
  • USB: Micro USB
  • Weight(g): 8.9g
  • Telemetry: No
  • OSD: BF OSD
  • UART: 5 Set
  • GYRO : MPU6000



Includes

  • 1x Foxeer Reaper F745 AIO V4 - F7 FC + 45A 2-6S BLHeli_S 4-in-1 Bluejay ESC
  • 1x Rubycon 35V 470uF Capacitor
  • 1x AMASS XT60H-M Connector
  • 1x 16AWG Black Wire
  • 1x 14AWG Black Wire
  • 1x 16AWG Red Wire
  • 1x 14AWG Red Wire
  • 1x 6-Pin FC Wire
  • 1x Hardware Kit
