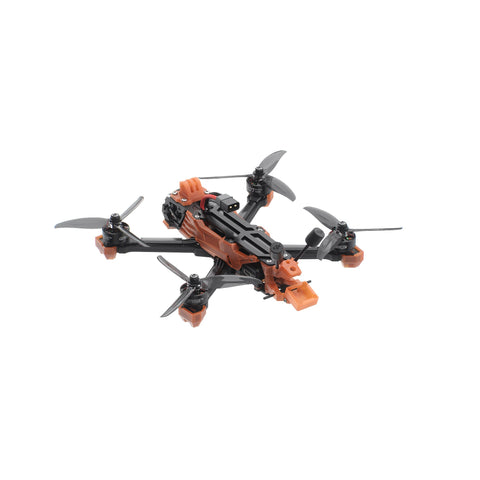

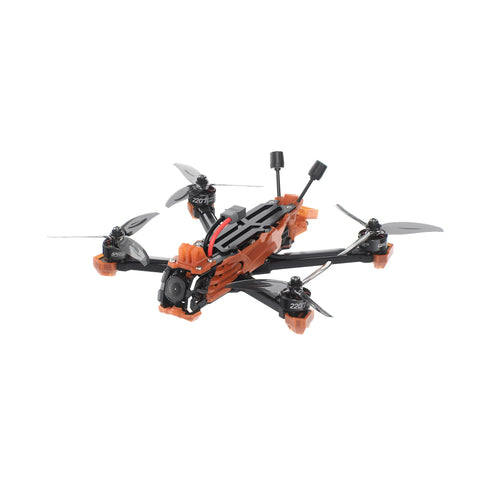

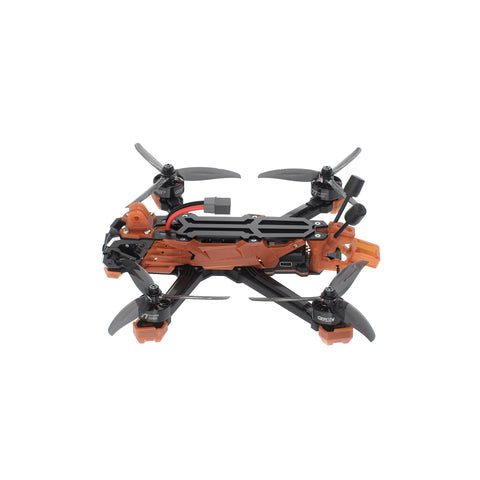

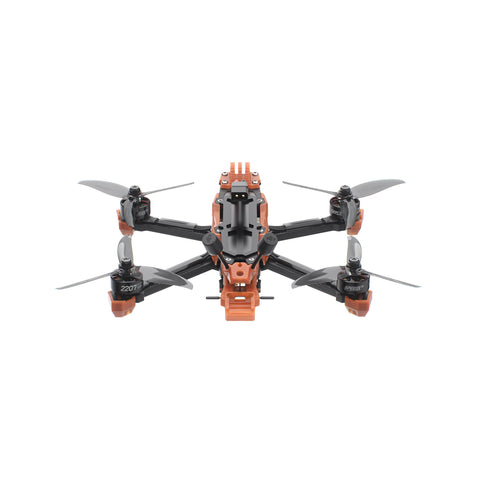

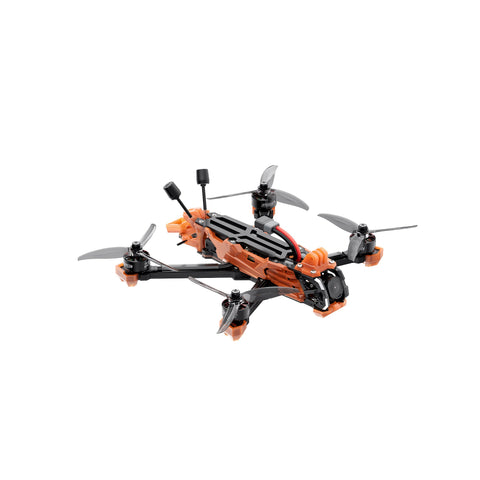

GEPRC Vapor 8S D5 O4 Pro FPV FreeStyle Racing Drone GPS

The Vapor series embraces the new 8S version, pushing control and performance to new heights.

Equipped with the TAKER H65_8S_32Bit 65A 4IN1 ESC and SpeedX2 2207 1570KV motors, it delivers relentless power for smooth yet exhilarating flights. Compared to traditional 6S builds, the 8S high-voltage system unlocks a far more aggressive flying experience.

Vapor-X 8S Power – Fly with ease, enjoy the thrill.

Feature

1. TAKER H65_8S_32Bit 65A 4IN1 ESC paired with SpeedX2 2207 1570KV motors provides continuous thrust for confident flights.
2. Combined with the F722 8S flight controller, experience the perfect fusion of freedom and passion.
3. CNC aluminum side plates with a sharp design—stylish, solid, and crash-resistant.
4. Added front-lip design shields the camera, ensuring fearless flying even in hard crashes.
5. Classic 7mm carbon fiber arms with increased width for strength and balanced aesthetics.

Specifications

Vapor-D5 8S O4 Pro FPV Drone

• Model: Vapor-D5 8S O4 Pro
• Frame: GEP-Vapor-D5 8S O4 Pro 8S frame
• Wheelbase: 238 mm
• Top Plate Thickness: 2.0 mm
• Middle Plate Thickness: 2.5 mm
• Bottom Plate Thickness: 2.5 mm
• Arm Thickness: 7.0 mm
• FC: GEPRC TAKER F722 8S
• MCU: STM32F722
• Gyro: ICM42688-P(SPI)
• Barometer: YES
• OSD: Betaflight OSD w/AT7456E
• ESC: TAKER H65_8S_32Bit 65A 4IN1 ESC
• VTX: DJI O4 Air Unit Pro Transmission Module
• Camera: DJI O4 Air Unit Pro Camera Module
• Antenna: DJI O4 Air Unit Pro Antenna
• GPS: GEP-M10 GPS
• Power Connector: XT60
• 5-inch Motors: GEPRC SPEEDX2 2207 1570KV
• 5-inch Propellers: GEMFAN 51477
• Vapor-D5 8S O4 Pro PNP Version Weight: 511g±5g
• Receiver: PNP/ELRS 2.4G
• Recommended Battery: 8S LiPo1300mAh – 1800mAh
• Flight Time: 12min

Includes

• 1 x Vapor 8S O4 Pro FPV Drone
• 2 x GEMFAN 51477
• 2 x Battery anti-slip pads
• 1 x Spare screw pack
• 2 x M20*250mm battery straps
• 1 x Screwdriver set
• 1 x GoPro mount
