HappyModel Bassline 2 Inch Micro 2S Toothpick FPV FreeStyle Drone

  • $105.00
  • Save $42
Protocol:
ELRS 2.4G
ELRS 2.4G

$147.00
FrSky (SPI D8/D16)
FrSky (SPI D8/D16)

$105.00 $147.00

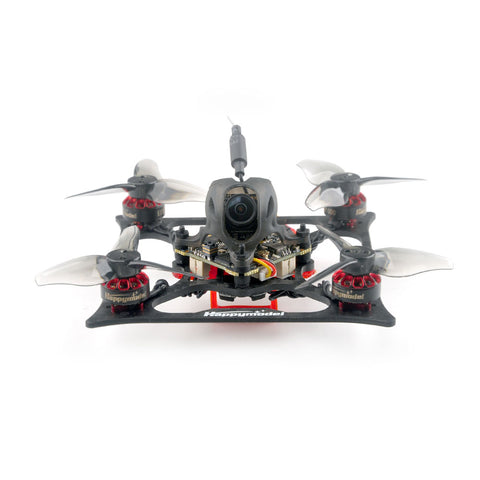

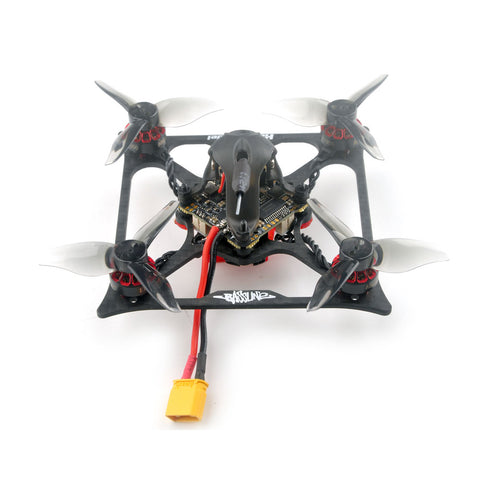

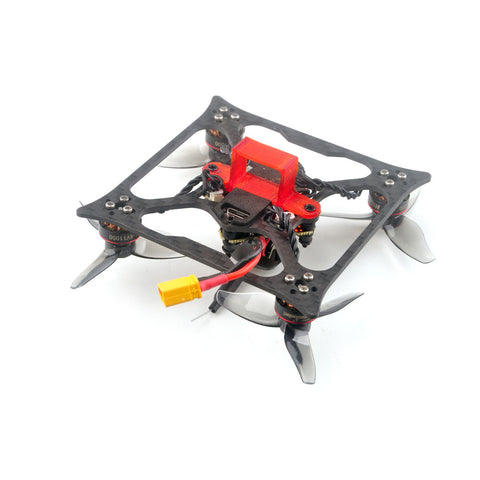

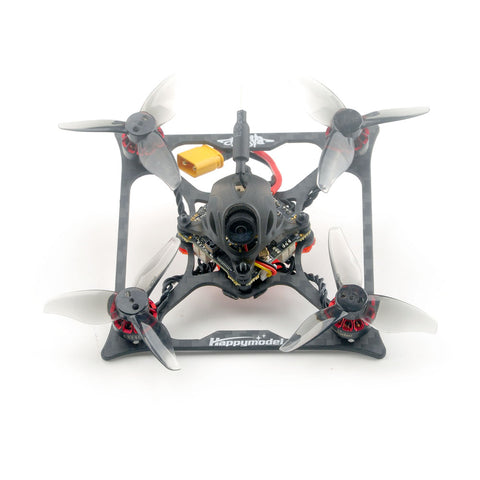

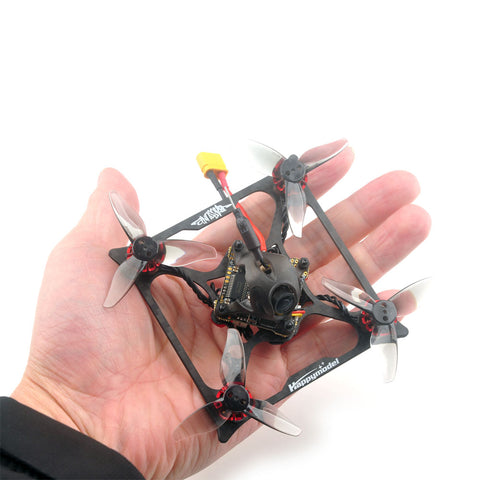

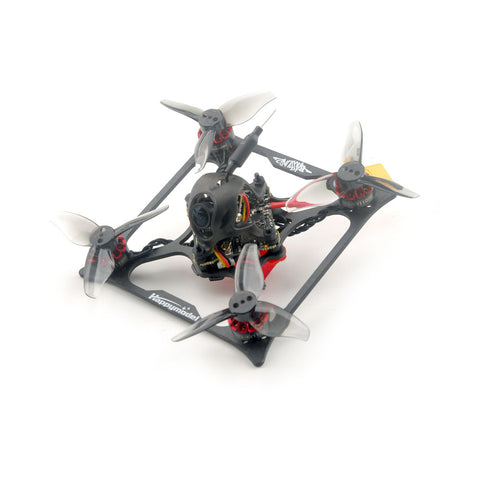

HappyModel Bassline 2 Inch Micro 2S Toothpick FPV FreeStyle Drone BNF FrSky ELRS

The Happymodel Bassline 2s Fpv Racer was inspired from happymodel team pilot Nathan Loopz. This idea was originally born in 2019 and now finally it comes true.



Features:

  • X12 5-IN-1 AIO flight controller built-in 2.4G ELRS V2.0 and OPENVTX
  • VTX Power up to 400mw
  • Support ELRS V3.0 (Need to upgrade firmware)
  • Powerful EX1103 KV11000 motors
  • CaddxFPV Ant FPV camera
  • Recommend 2S 350mah/450mah/550mah/650mah battery (Not include)
  • Battery tray size: Maximum support for batteries with a width of approximately 17mm and a height of approximately 13mm



Specifications:

  • Brand Name: Happymodel
  • Item Name: Bassline 2S 2inch Micro FPV toothpick drone
  • Wheelbase: 90mm
  • Size: 115mm*115mm*40mm

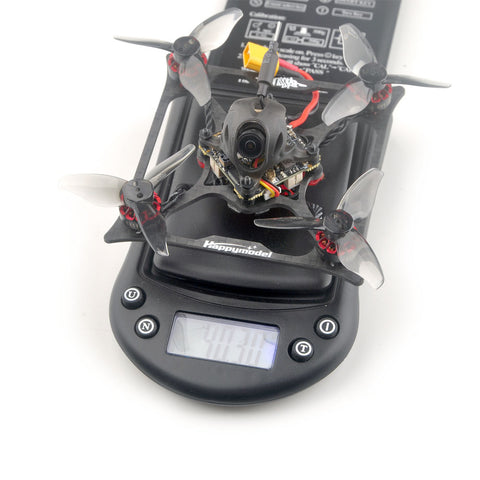

  • Analog version Weight: 40gram



Analog version option:

  • 2.4G ELRS SPI
  • SPI Frsky D8/D16
  • SPI Flysky
  • PNP (without onboard receiver)



Spare parts specifications:


Motor

  • Mode: EX1103 KV11000
  • Configu-ration:9N12P
  • Stator Diamter:11mm
  • Stator Length:3mm
  • Shaft Diameter:Φ1.5mm
  • Motor Dimension(Dia.*Len):Φ13.5mm*15.5mm
  • Weight(g):3.8g
  • No.of Cells(Lipo):1-2S


Propellers

  • Weight:0.88g
  • Material: PC
  • Pitch:2.3inch
  • Props Dia:52.17mm
  • Center Thickness:5mm
  • Center Hole Dia:1.5mm


Flight controller

  • X12 ELRS V2.1 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280
  • X12 Frsky V2.1 flight controller built-in SPI Frsky 2.4G receiver Target: CRAZYBEEF4FR
  • X12 Flysky V1.0 flight controller built-in SPI Flysky 2.4G receiver Target: CRAZYBEEF4FS
  • X12 PNP V1.1 flight controller without onboard receiver Target: CRAZYBEEF4DX
  • MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
  • Sensor: ICM20689 or ICM42688P(SPI connection)
  • Mount hole size: 25.5mm*25.5mm
  • Power supply: 1-2S battery input (DC 2.9V-8.7V)
  • Built-in 12A(each) Blheli_S 4in1 ESC
  • Built-in Betaflight OSD(SPI Control)
  • Built-in 5.8G OpenVTX 0mw~400mw
  • Built-in ExpressLRS 2.4G,Frsky D8/D16,Flysky AFHDS 2A
  • Built-in voltage detection
  • Built-in current sensor



Onboard 4in1 ESC

  • Power supply: 1-2S LiPo/LiPo HV
  • Current: 12A continuous peak 15A (3 seconds)
  • Support BLHeliSuite programmable
  • Default Factory firmware: Z_H_30_REV16_7.HEX
  • Default protocol: DSHOT300
  • Support Bluejay firmware


Onboard SPI ExpressLRS 2.4GHz Receiver

  • Packet Rate option: 50Hz/150Hz/250Hz/500Hz
  • ExpressLRS Firmware version: V2.0
  • RF Frequency: 2.4GHz
  • Antenna : SMD antenna
  • Telemetry output Power: <12dBm
  • Receiver protocol: SPI ExpressLRS
  • Compatible with ExpressLRS V2.0 TX Module
  • Couldn’t flash separately ExpressLRS firmware
  • Could flash FC firmware to support ExpressLRS v3.0 TX module


Onboard SPI Frsky D8/D16 receiver Version

  • SPI BUS receiver Frsky D8/D16 compatible
  • Compatible Non EU transmitter D8/D16 model
  • Channels: 8ch/16ch
  • No ground interference ( Transmitter and receiver 1 m from the ground): 200meter
  • Failsafe support



Onboard SPI Flysky receiver Version

  • SPI BUS receiver
  • Protocol: AFHDS-2A
  • Channels: 14ch(AFHDS-2A)
  • No ground interference ( Transmitter and receiver 1 m from the ground): 200meter
  • Failsafe support


PNP Version(without onboard receiver)

  • Full UART1 for external Receiver
  • Support CRSF/GHOST/SBUS/IBUS/DSMX protocol
  • IR1 pad(invert RX1) used for SBUS input


Onboard 5.8g OPENVTX

  • Firmware version: OPENVTX
  • Smartaudio v2.1
  • PIT Mode support
  • RCE Mode support
  • Channels:48ch
  • Transmitting Power: 0/RCE/25mw/100mw/400mw
  • Power supply: DC 5V
  • Current (5v): <650ma (400mw)


Caddx ANT 1200tvl camera

  • Image Sensor: 1/3" CMOS Sensor
  • Horizontal Resolution: 1200 TVL
  • TV System: NTSC or PAL
  • IMAGE: 16:9 or 4:3
  • Synchronization: Internal
  • Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
  • S/N Ratio : >52dB (AGC OFF)
  • Video Output: CVBS
  • Lens: 1.8mm
  • Min. Illumination: 0.001Lux@F1.2
  • Auto Gain Control: YES
  • WDR: Global WDR
  • DNR: 3D DNR
  • Dimensions: 14*14mm(with bracket to 19*19mm)
  • Wide Power Input: DC 3.7-18V
  • Weight: 2g (N.W.)



Package Included:

  • 1x Bassline 2inch frame and canopy
  • Option1: X12 ELRS V2.1 flight controller built-in SPI ELRS 2.4G receiver
  • Option2: X12 Frsky V2.1 flight controller built-in SPI Frsky 2.4G receiver
  • Option3: X12 Flysky V1.0 flight controller built-in SPI Flysky 2.4G receiver
  • Option4: X12 PNP V1.1 flight controller without onboard receiver
  • 4x EX1103 KV11000 brushless motor
  • 1x Gemfan toothpick 2023 tri-blade propellers(4cw+4ccw)
  • 1x Caddx ANT 1200TVL Camera
  • 1x Onboard 5.8G Openvtx 0mw~400mw VTX

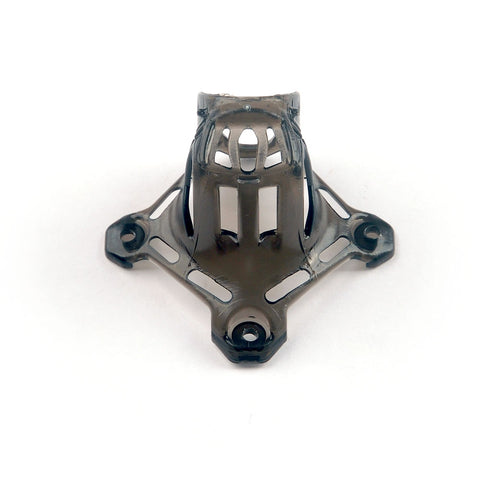

  • 1x Canopy for 14mmx14mm camera
  • 1x Screwdriver
