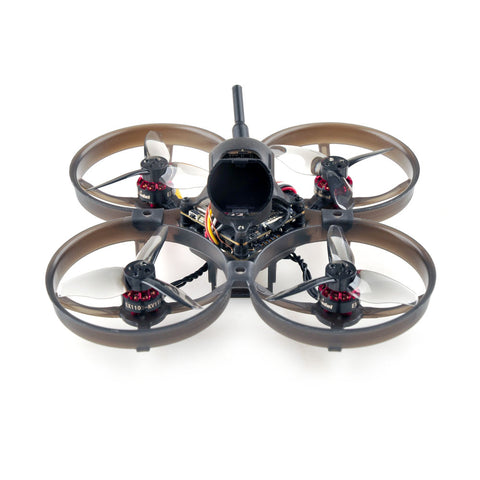

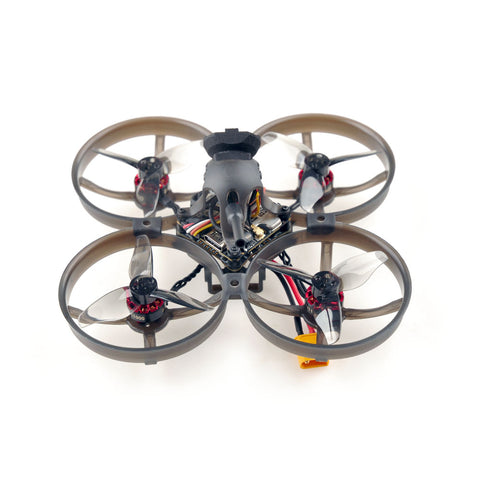

HappyModel Mobula8 O4 DJI HD 2S 85mm Digital FPV Whoop Drone ELRS 2.4G

The Happymodel Mobula8 O4 micro FPV whoop comes out now . It comes with DJI O4 air unit which would provide excellent and unbelievable FPV footage. We added FOV Extender for the O4 camera on Mobula8, this would be a great improvement for FPV flying.

Features:

Equipment with DJI O4 air unit and external FOV Extender
ND Filter ready
2S battery support Powerful and Smooth freestyle flying
UART ExpressLRS receiver support stable control link

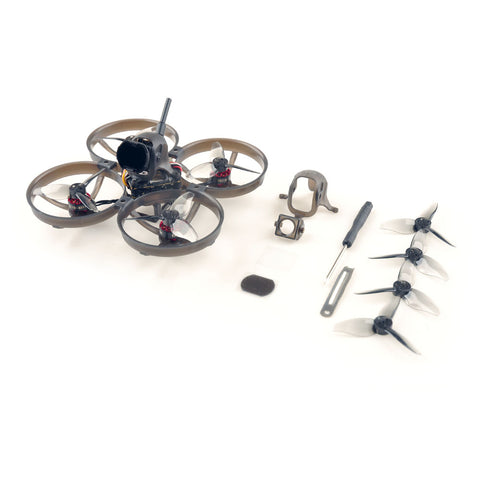

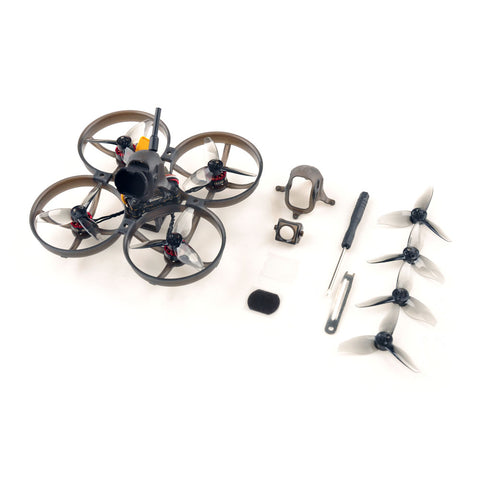

Package includes:

Item Name	Qty
Happymodel Mobula8 Frame	1
CrazyF405HD ELRS flight controller firmware target:BETAFLIGHTF4	1
EX1103 KV11000 brushless motor	4
Gemfan Hurricane 2023 tri-blade propellers(4cw+4ccw)	1
DJI O4 Air unit	1
FOV Extender for O4 camera	1
Angle-adjustable Canopy	1
Screw driver	1

Spare parts specifications:

Motor	Mode: EX1103 KV11000 Configu-ration:9N12P Stator Diamter:11mm Stator Length:3mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.Len):Φ13.5mm15.5mm Weight(g):3.8g No.of Cells(Lipo):1-2S
Propellers	Weight:0.88g Material: PC Pitch:2.3inch Props Dia:52.17mm Center Thickness:5mm Center Hole Dia:1.5mm
Flight controller	MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH) GYRO Sensor: BMI270 (SPI connection) Mount hole size: 25.5mm*25.5mm Power supply: 1-2S battery input (DC 2.9V-8.7V) Built-in 12A(each) Blheli_S 4in1 ESC Built-in Serial ExpressLRS 2.4G Built-in BMP280 Barometer Built-in 8MBp blackbox Built-in voltage meter sensor , voltage meter scale 110 Built-in current meter sensor , current meter scale 470
Onboard 4in1 ESC	Power supply: 1-2S LiPo/LiPo HV Current: 12A continuous peak 15A (3 seconds) Support BLHeli_S Bluejay firmware Factory firmware: Bluejay ESC V0.19 Firmware target: Z-H-30 Default protocol: DSHOT300
Onboard UART ExpressLRS 2.4GHz Receiver	Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz RF Frequency: 2.4GHz Antenna: enameled copper wire 31mm length Telemetry output Power: <12dBm Default firmware version: ExpressLRS V3.0.1 Firmware target: HappyModel EP 2400 RX Could update firmware via ExpressLRS configurator
DJI O4 Air Unit	Weight: Air Unit (camera module included): Approx. 8.2 g Transmission Module: 30×30×6 mm (L×W×H) Camera Module: 13.44×12.36×16.50 mm (L×W×H) Camera Cable Length: 50mm Coaxial Cable: 50 mm 3-in-1 Cable: 50 mm Operating Frequency: 5.170-5.250 GHz 5.725-5.850 GHz Operating frequency varies by region. Refer to local regulations. Transmitter Power (EIRP): 5.1 GHz: <23 dBm (CE) 5.8 GHz: <30 dBm (FCC) <14 dBm (CE) <30 dBm (SRRC) Live View Quality: 1080p at 30/50/60/100fps
FOV Extender for O4 Camera	Weight: only 3.2gram Built-in widening lens FOV angle up to 150 degree 3d printed Camera holder Include UV filter, ND8 filter, ND16 filter
