HappyModel SE0803 Brushless Motor 16000KV Mobula7

  • $10.00
Color:
Red
Red
Black
Black



HappyModel SE0803 Brushless Motor 16000KV Mobula7

KV Optional: 12000KV(2s-3s) ; 16000KV(1s-2s) ; 19000KV (1s)
Version Optional: CW ( Red Cable) ; CCW ( Black Cable)



Specification:

Brand Name: Happymodel
Item Name: SE0803 1-2S brushless motor
KV Optional: 16000KV(1s-2s)
Version Optional: CW ( Red Cable) ; CCW ( Black Cable)
Shaft Diameter: 1.0mm
Configuration: 9N12P
Stator Diameter: 8mm
Stator Length: 3mm
Motor Dimension(Dia.*Len): Φ10.5mm*16mm
Terminals: JST1.25mm
No.of Cells(Lipo): 1-3S
Wire length(include connector): 40mm

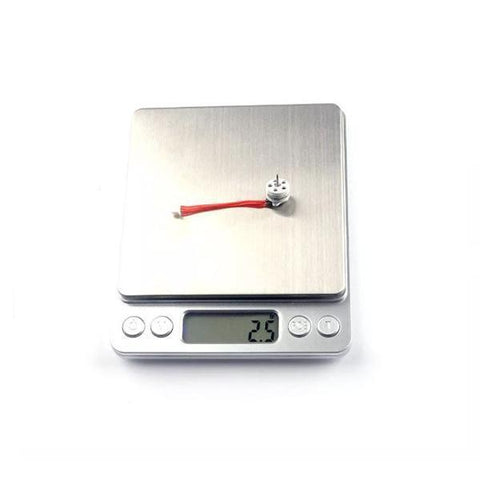

Weight: 2.5g
Application: Compatible with Mobula 7 Drone

Features:

- Super tiny only 2.5g
- Compatible for 1s-2s brushless whoop
- Ball bearing and Bushing
- Double E-clip design, prevent Motor bell to flying off
- Good Dynamic balance



Package Included:

1x SE0803 Motor
1x bag of Screws
