HappyModel X12 AIO Whoop Flight Controller 2S F4 FC + 12A 4IN1 ESC 25-400mW VTX 25x25mm

  • $74.00
Type:
SPI ELRS 2.4G
SPI ELRS 2.4G
SPI FrSky D8/D16
SPI FrSky D8/D16



HappyModel X12 AIO Whoop Flight Controller 2S F4 FC + 12A 4IN1 ESC 25-400mW VTX 25x25mm

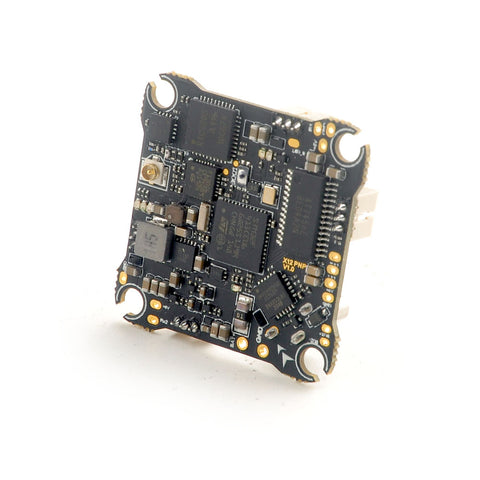

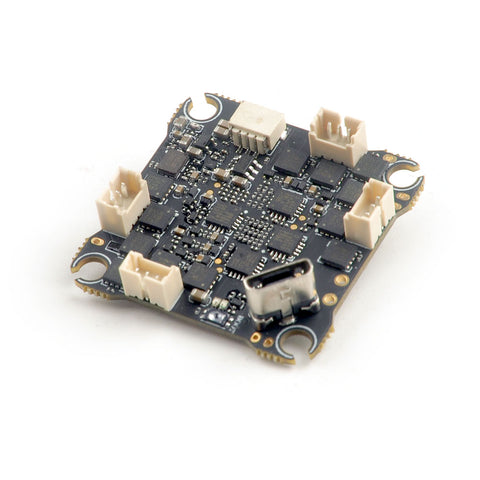

The HappyModel X12 2S AIO Whoop Flight Controller (F4 FC / 12A 4in1 ESC / 25-400mW VTX) AIO board featuring an F4 Flight Controller, onboard 12A 4-in-1 ESC, 5.8GHz OpenVTX and built-in receiver of your choice! Happymodel continues to impress with yet another fantastic AIO for whoop applications!



Specifications

  • Input Voltage: 1-2S
  • MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
  • Gyro: MPU6000 or ICM20689 or BMI270
  • Max Continuous Current: 12A
  • VTX Output Power: 25-400mW
  • Antenna Connector: U.FL
  • OSD: Yes
  • Betaflight Target: ELRS Version: CRAZYBEEF4SX1280, PNP Version: CRAZYBEEF4DX
  • ESC Firmware: Z_H_30_REV16_7
  • Mounting Pattern: 25x25mm

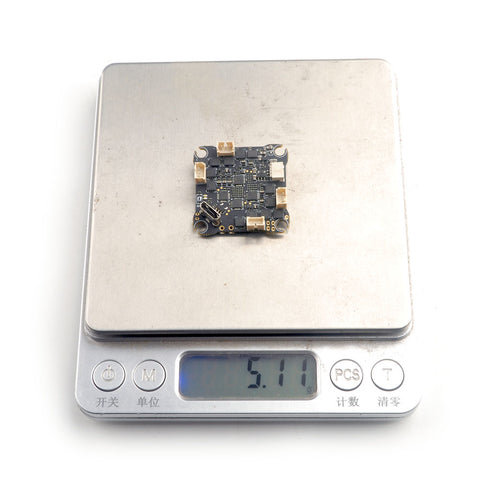

  • Weight: 5.1g



ELRS Version

  • Packet Rate: 50Hz/150Hz/250Hz/500Hz
  • ELRS Firmware Version: V2.0
  • RF Frequency: 2.4GHz
  • Antenna: SMD antenna
  • Telemetry output Power: <12dBm

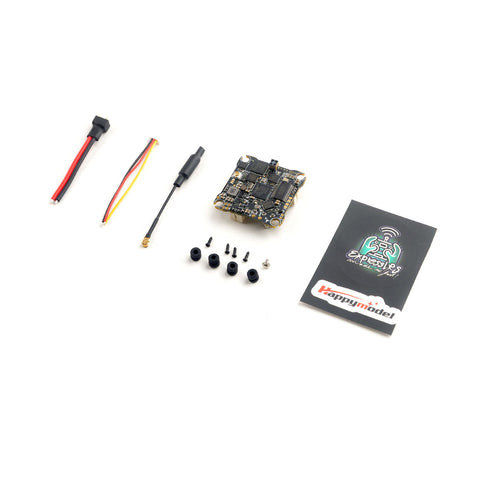

Includes

  • 1x HappyModel X12 2S AIO Whoop Flight Controller (F4 FC / 12A 4in1 ESC / 25-400mW VTX)
  • 1x Connecting Wires Set
  • 1x Hardware Set
  • 1x Antenna
