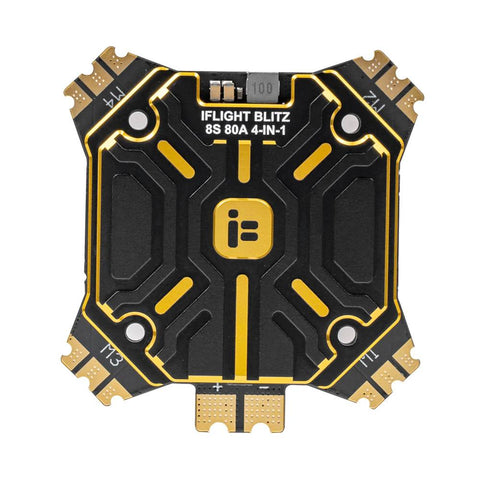

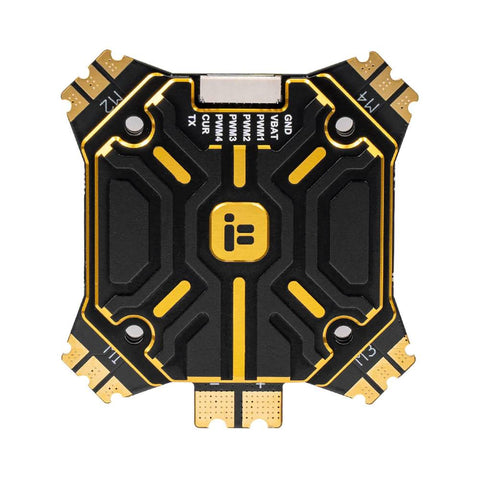

iFlight BLITZ E80 Pro G2 80A 4IN1 BLHeli_32 ESC 35x35/30x30mm

  • $270.00



iFlight BLITZ E80 Pro G2 80A 4IN1 BLHeli_32 ESC 35x35/30x30mm

The iFlight BLITZ E80 uses a MOSFET PSMN1R0-40YLD, which can withstand a continuous current of 80A at 25°C, with a maximum power dissipation of 198W. The BEC power supply adopts TI automotive-grade dedicated synchronous rectifier chip, supporting up to 100V. The 1-4 layer power board of the PCB circuit is ultra-thick copper with a thickness of 4OZ, ensuring continuous output under high-power operation. The STM32F051 main control processor with a running frequency of up to 48MHz, combined with a three-in-one driver IC, achieves a faster running speed!



Features

  • Rational layout, countersunk holes on extended solder pads to ensure PCB layer connection
  • G071 MCU, 48mHz maximum clock speed
  • TDK MLCC Low ESR ceramic capacitors
  • Top grade PSMN1R0-40YLD MOSFET
  • 8 layers double-sided PCB board



Specifications

  • Supports DShot DShot150/300/600/MultiShot/ OneShot etc.
  • Constant current:80A,100A(Burst)
  • Mounting Holes: 35*35mm/Φ3mm
  • Current sensor: Yes, scale 200
  • Firmware: IFLIGHT_BLITZ_G2
  • Telemetry: Supported
  • Weight:65g(±10)
  • Volts input: 2-8S
  • BEC: No



Includes

  • 1x iFlight BLITZ E80 Pro G2 80A 4-in-1 BLHeli_32 ESC - 35x35
  • 1x 30x30 to 35x35 Mounting Adapter
  • 1x Amass XT90E-M Adapter
  • 2x UPL 470 50V Capacitors
  • 1x XT90 10AWG Connector
  • 1x 10AWG Grounding Wire
  • 1x iFlight Filter Module V1
  • 1x 10AWG Voltage Wire
  • 1x FC Connecting Wire
  • 1x Hardware Set
