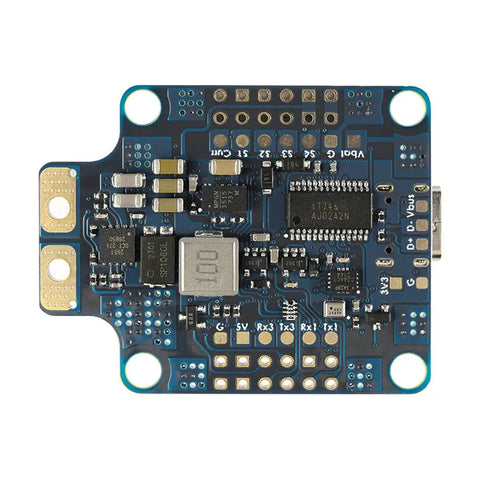

Matek F405-TE Flight Controller

The Matek F405-TE Flight Controller features a 30.5 x 30.5mm mounting pattern and weighs 10g. It features a Barometer, Micro SD Slot, 6x UARTS, 11x PWM outputs, 9-36V DC IN (3-8S LiPo), 220A Current Sensor, BEC 12V 2A, 5V 1.5A and Dual analog camera signal inputs.


Features

  • OSD: AT7456E(Analog), DJI OSD(Digital)
  • Dual analog camera signal inputs
  • 11x PWM outputs(S1-10, LED)
  • 6x UARTS, 1x softserial_TX
  • Beta Flight MATEKF405TE
  • 9-36V DC IN (3-8S LiPo)
  • ArduPilot MatekF405-TE
  • INAV MATEKF405TE SD
  • MCU: STM32F405RGT6
  • Barometer: SPL06-001
  • BEC 12V 2A, 5V 1.5A
  • 220A Current Sensor
  • IMU: ICM42688-P
  • Micro SD Slot
  • 2x PINIO
  • 1x 12C
  • 4x ADC



Specifications

  • PWM Outputs: 11x PWM outputs (8x Dshot compatible with BF/ArduPilot)
  • Pads: 1x Group of G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND
  • Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
  • UARTS: 6x UARTs, 1x Softserial_Tx option(INAV/BF)
  • ADC: 4x ADC (VBAT, Current, RSSI, Airspeed)
  • Built-in inverter: UART2-RX for SBUS input
  • ESC: 4x individual ESC power/signal pads
  • Camera: Switchable Dual Camera Input
  • MCU: 168MHz STM32F405RGT6
  • Blackbox: MicroSD slot (SPI)
  • Dimensions: 36 x 46 mm
  • IMU: ICM42688-P (SPI)
  • Baro: SPL06-001 (I2C)
  • PINIO: 1x spare PINIO
  • OSD: AT7456E (SPI)
  • Weight: 10g

PDB

  • Battery Voltage divider: 1K:20K (INAV scale 2100, BF scale 210, ArduPilot BATT_VOLT_MULT 21.0)
  • Current Senor: 220A, 3.3V ADC (INAV/BF scale 150, ArduPilot 66.7 A/V)
  • PDB: 4x 35A (Max.4x 50A)
  • Input: 9~36V (3~8S LiPo)
  • LDO 3.3V: 200mA
  • BEC: 5V 1.5A
  • BEC: 12V 2A

Firmware

  • BetaFlight: MATEKF405TE
  • INAV: MATEKF405TE_SD
  • ArduPilot: MatekF405-TE

IMPORTANT NOTES

  • INAV, and DSHOT can not work on S3, S5, and S7 because of DMA clash, pls use ONESHOT or MULTISHOT and calibrate ESC PWM range.



Links

Includes

  • 1x MATEKSYS F405-TE Flight Controller - 30x30
  • 1x Rubycon ZLH 35V/470uF (Low ESR)
  • 6x silicon grommets M4 to M3
  • 1x F405-TE
