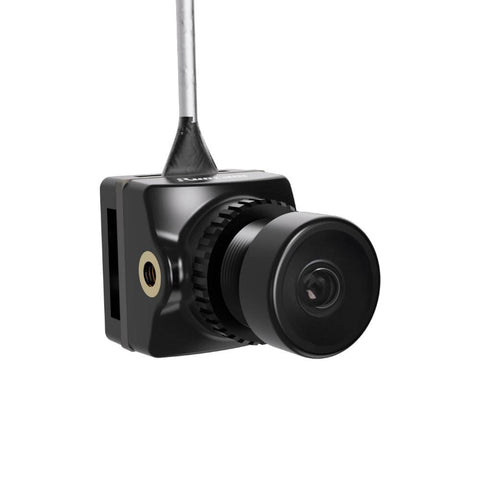

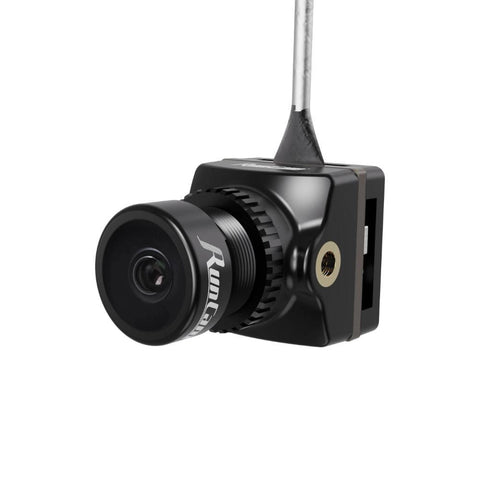

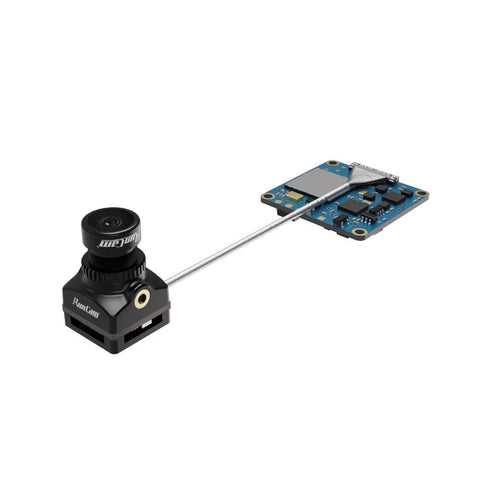

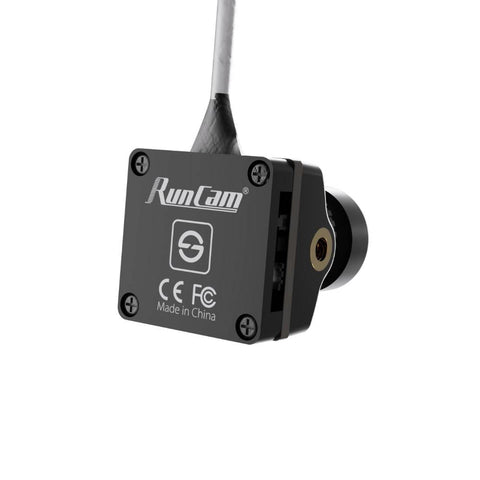

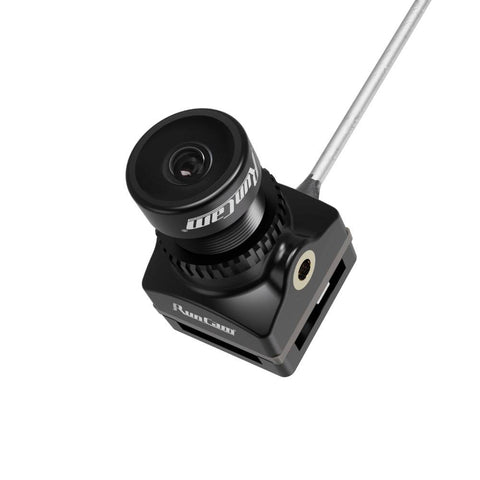

RunCam Split 4 V2 FPV Camera

Capture stunning aerial footage with the RunCam Split 4 V2, a high-performance FPV camera for drone enthusiasts. With a 13MP SONY image sensor and 140° FOV, it records in 4K at 30fps or 2.7K at 60fps for immersive visuals. Its compact 14x14mm lens and 29x29mm PCB ensure easy integration into most drones. The camera supports MP4 format and switchable NTSC/PAL modes. Store footage on a 128GB Micro SD card (U3 recommended) and power it with DC 5-20V, avoiding direct battery connection. At just 10.2g, the Split 4 V2 is perfect for your FPV adventures.

Features

Versatile Recording Options
Lightweight Construction
Video Format Support
Switchable TV Modes
High-Quality Imaging
Power Requirements
Wide Field of View
Storage Capacity
Compact Design
Sleek Design

Specifications

Power Input: DC 5-20V (Do not power directly from the battery; direct battery connection will cause surges and damage the camera.)
Max Micro SD Card Supported: Max. 128GB
- SAMSUNG 128GB U3 recommended (2.7K60 / 2.7K50 / 1080P120 require U3 or above; other resolutions require U1 or above).
- Please ensure the SD card is formatted as exFAT to prevent errors.
Video Resolution: 4K@30fps / 2.7K@60fps / 2.7K@50fps / 1080P@60fps
TV Mode: NTSC (720480) / PAL (720576), switchable
Mounting Hole Distance: 25.5x25.5mm
Working Current: Max. 450mA @ 5V
Lens Module Size: 14x14mm
Image Sensor: SONY 13MP
Field of View (FOV): 140°
Video File Format: MP4
PCB Size: 29x29mm
Interface: UART
Model: Split 4
Weight: 10.2g
