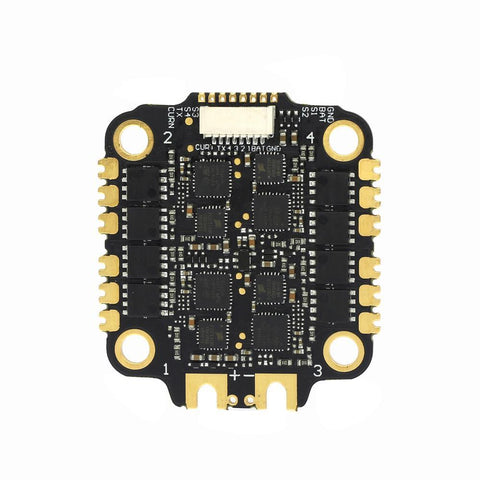

SkyStar KM60 4IN1 60A 3-6S ESC 30.5x30.5mm
- Excellent over-current capability.
By adopting the best PCB material and PCB production process. Such as application of high TG materials, 3oz copper PCB & 2μm gold deposition process on PCB. Together with the 6-layer layout design of the board, compared with other common 4 layers, It can withstand bigger current.
- Extreme stably support 6S LiPo battery
By use of 24 pcs of new Toshiba standard 40V 5x6 Mosfet & imported from USA or Japan electronic materials. Plus advanced lead-free SMT Processing technology. It makes ESC can fully support 6s battery and get better performance.
- Excellent heat dissipation performance

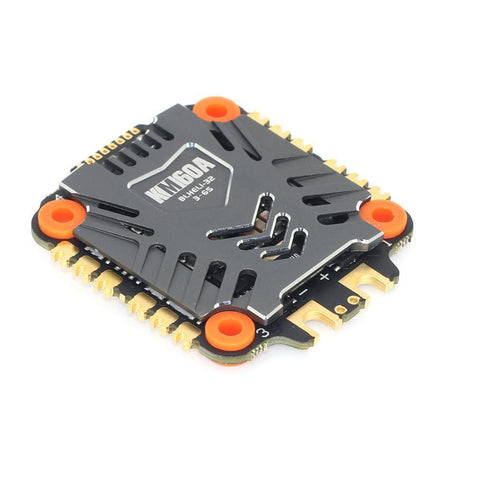

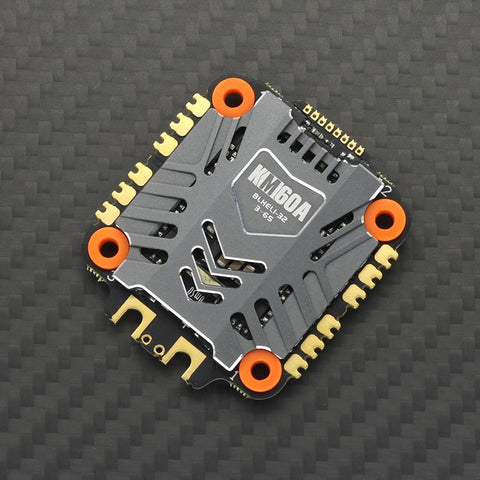

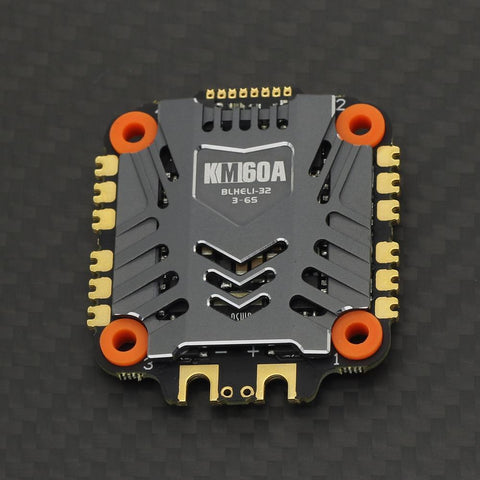

The CNC hollow aluminum alloy shell use, Not only good for heat dissipation but also gets a beautiful appearance.
- Better control performance
Flashed with the latest Blheli_32 firmware in factory, support telemetry functions (including voltage, RPMS & current )
Specifications:
- Input voltage: 3-6S LiPo
- Con.Current: 60A
- Peak Current: 80A≥ 10S
- Firmware: BLHeli_32
- Support: Dshot 600/1200

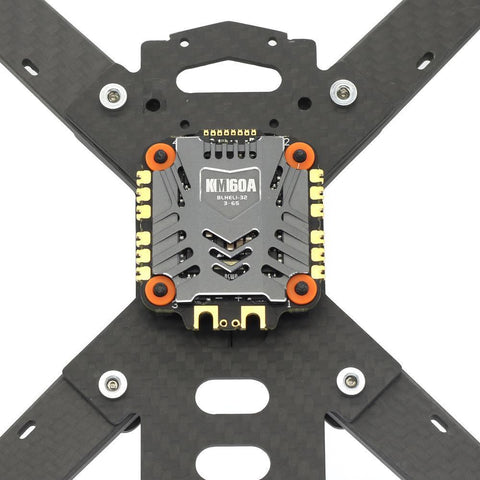

- Mounting hole: 30.5mm/M3
- BEC: No
- Product size: 41*46*7.6mm

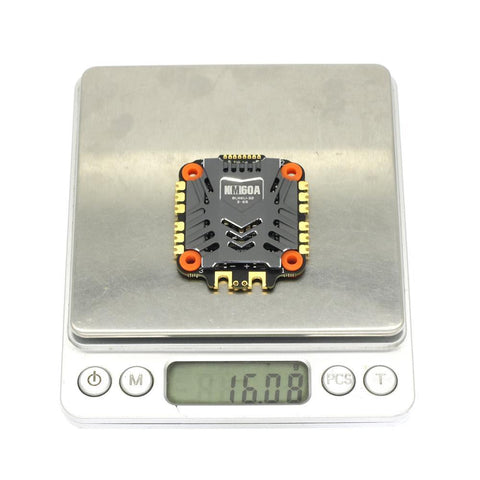

- Weight: 18g
Included:
- 1 x Skystar KM60 60A 3-6S 4 in 1 ESC
- 4 x Damping Rubbers (M3x8mm)
- 4 x Damping Rubbers (M3x3.5mm)
- 1 x XT60 connector and wires
- 2 x 8pin wiring harness (1x 70mm,1x 50mm)
- 1 x 35v 560uf Capacitor
