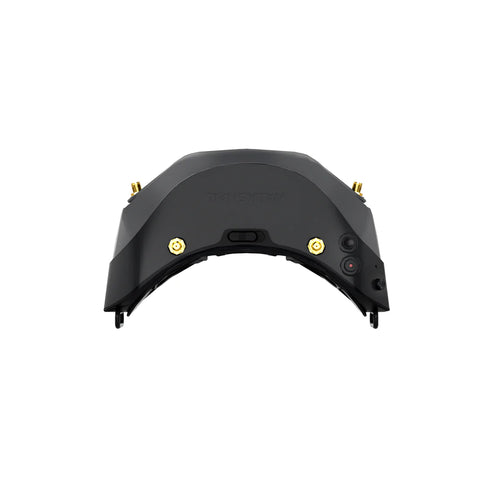

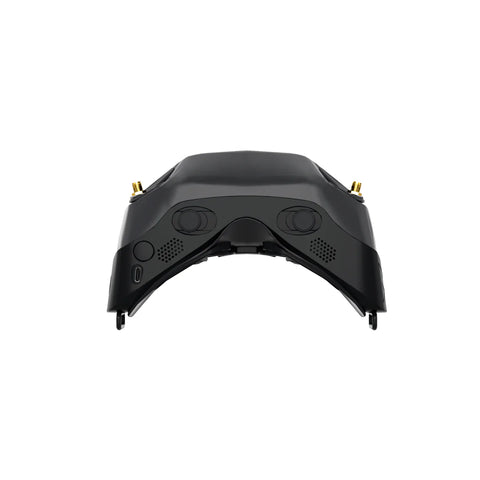

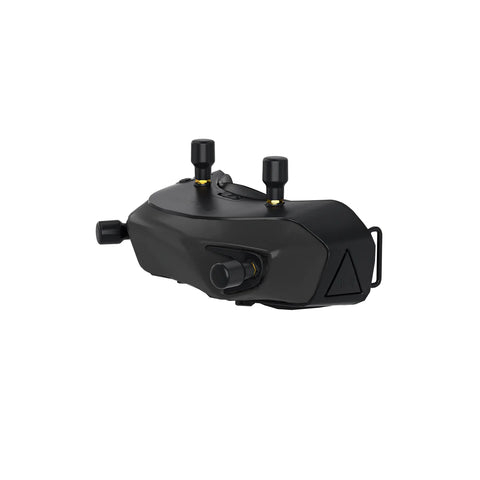

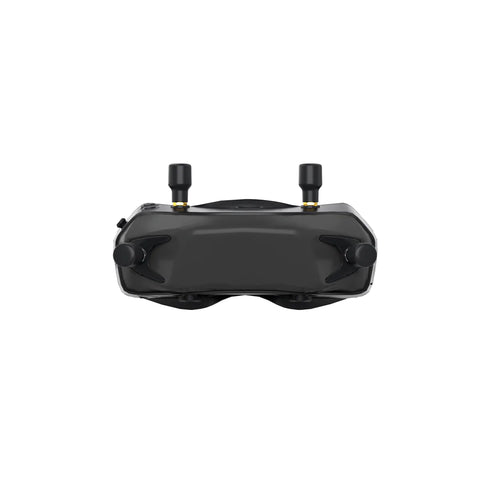

WalkSnail Avatar HD FPV Goggles

  • $553.00

WalkSnail Avatar HD FPV Goggles OLED 1080p Red Bird LHCP Antenna HDMI Output DVR Canvas Mode

The Walksnail Avatar Digital HD FPV Goggles feature high-fidelity Full HD OLED displays and support a new 1080p video transmission protocol in a compact design. These goggles are designed as lightweight mini-size goggles with 46° FOV and focus adjustment with HDMI output.



  • Customizable Fit with Optional Faceplate Pad Accessories
  • Red Bird LHCP 5.8GHz Goggle Antennas
  • HD Video Output via USB-C Connector
  • Supports Betaflight Canvas Mode
  • Adjustable Anti-Fog Ventilation
  • On/Off Power Button
  • Integrated HD DVR
  • Focus Adjustment
  • 46° FOV




    • Transmitter Power: FCC: <30dBm: CE: <14dBm: SRRC: <20dBm: MIC: <25dBm
    • Micro Displays: Full HD 1080p OLED Dual Micro Displays
    • Inter-Pupillary Distance (IPD): 57 ~ 70mm (adjustable)
    • I/O Interface: Type-C, MicroSD Card, DC 5.5x2.1mm
    • Adjustable Focus Range: +2 to -6 Diopter
    • Communication Frequency 5.8GHz
    • IPD Mechanical Range: 28-70mm
    • Power Input: 6V-25.2V (2S-6S)
    • Screen Resolution: 1920x1080
    • IPD Visual Range: 54-74mm
    • Model: Avatar HD Goggles
    • SD Card: Supports 256Gb
    • HDMI Output: Supported
    • Field of View (FOV): 46°
    • Screen Size: .49 Inches


    • Cross-Polarization Rejection: -15 to -30dBi
    • Radiation Efficiency: >97%
    • Dimensions: 24.8x15.3mm
    • Bandwidth: 5.6-6GHz
    • Average Gain: 1.9dBi
    • Connector: RP-SMA
    • Polarization: LHCP
    • Model: Red Bird
    • Weight: 4.2g
    • VSWR: <1.3


    Recommended (Not Included)


    • 1x Walksnail Avatar Digital HD FPV Goggles
    • 1x Lens Cleaning Cloth
    • 4x Red Bird Antennas
    • 1x XT60 Power Cable
    • 1x Goggle Strap
    • 1x Carry Case
