WalkSnail Avatar HD Nano Racing Kit V3

  • $120.00
  • Save $13

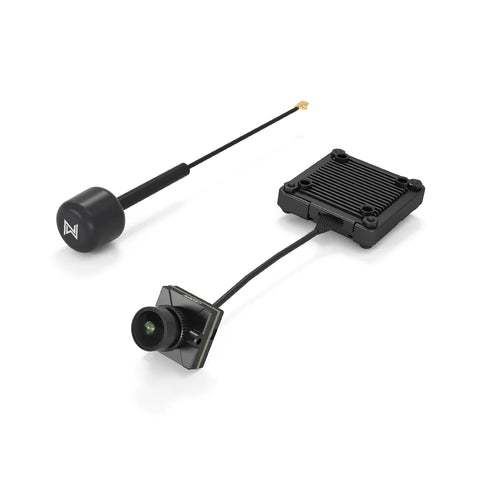

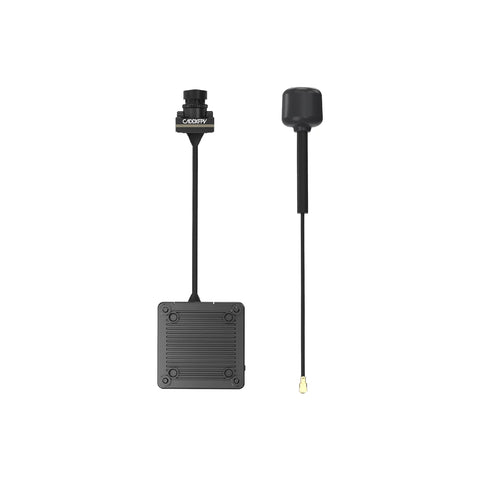

Walksnail Avatar HD Nano Racing Kit V3

Product Features

  • 3.1~13V
  • 500mW
  • FOV160°
  • Metal case
  • 1080P/60fps
  • 4:3 native sensor
  • Built-in 32G storage

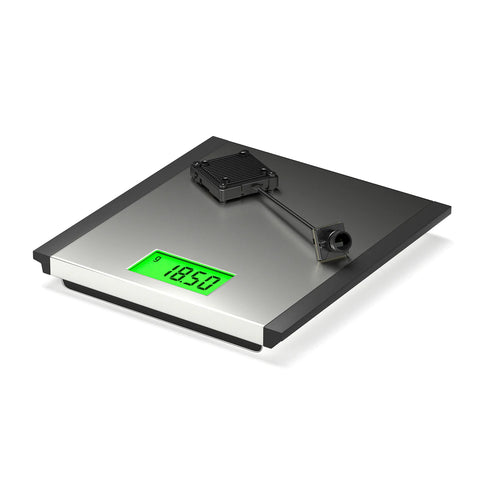

  • 18.5g light-weight
  • Nano Camera 14*14mm

Specification


Camera
Model    Avatar HD Nano Camera V3
Image Sensor  1/3.2-Inch 4Mp 4:3 sensor
Resolution   1080P/60fps,720P/120fps,720P/60fps
Ratio       4:3 native / 16:9
Lens  2.1mm
FOV     160°
Aperture     F2.0
Shutter  Rolling Shutter
Min.Illumination   0.001Lux
Weight  3g (without cable)
Dimensions  14*14*16.8mm
Coaxial Cable  90mm(default)/140mm
VTX
Model Avatar HD Mini VTX V3
Communication Frequency 5.725-5.850GHz
Transmitter Power (EIRP) FCC:<27dBm;CE:<14dBm;SRRC:<20dBm;
MIC:<25dBm
I/O Interface JST1.0*4(Power in)JST0.8*4(USB)
Mounting Holes 25.5*25.5mm(M2 hole);20*20mm(M3 hole)
Dimensions 31.5*31.5*9.4mm
Storage 32G
Recording 1080p/720p
Weight 13.4g
Operating Temperature -20-40℃
Channels 8
Wide Power Input 3.1V-13V
Supported FC System Betaflight; Inav; Fettec; Kiss; ArduPliot
OSD Canvas mode
Latency Average latency 22ms
Antenna  1(IPEX)
VTX Antenna
Model Avatar V2 antenna
Polarization LHCP
Bandwidth 5600MHz-6000MHz
Average Gain 1.9dBi
VSWR ≤1.5
Interface IPEX-1
Line Length 105mm
Dimension R15*45mm(without cable)
Weight 2g
Packing List
Avatar HD Nano Kit V3 X1
4 Pin USB Cable X1
4 Pin Power Cable X1
M2x4/5/6mm Screws  X2
M2x14mm Screws   X4
M2*5*0.5mm washer X4
2.1x3.4x1mm Gasket   X5
14 to19mm bracket X1

Bullet Point for Walksnail Avatar HD Nano Kit V3

  • The Walksnail Avatar HD Nano Kit V3 supports 1080P/60fps, with a 4:3 native sensor that provides smooth and stunning images. With this kit, you can capture flying footage with exceptional clarity and detail

  • Walksnail Avatar HD Nano Kit V3 is suitable for more drones, with 3.1-13V voltage input and 500mw power output, you'll be able to fly various kinds of drones with amazing video quality and range

  • Nano camera V3 with dimensions of 14*14mm and a weight of only 3g, equipped with a 2.1mm lens and 160° FOV, provides clearer and more realistic image quality

  • The Avatar vtx comes with 32g built-in storage, it can record 1080p HD and interference-free flight footages without adding an extra SD card and an action camera, reducing the overall weight of the drones and extending the flight time, allowing you to experience a more comfortable flight while recording 1080 HD videos

  • Canvas Mode:supporting Betaflight, kiss, Inav, Ardu full OSD display and customization, you'll be able to customize various OSD fonts, colors and patterns you like and easily adjust the parameters you want via remote control
